Predefine Filter Values

You can limit the available filter values by predefining them in the lookup field.

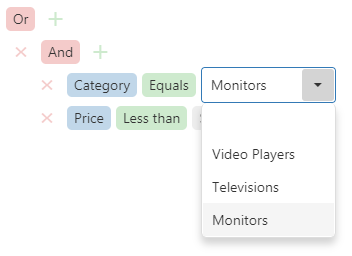

DevExtreme HTML5 JavaScript Filter Builder Lookup Field

Each lookup field has an individual data source. It can be a simple array of filter values...

jQuery
JavaScript
$(function () {
    $("#filterBuilder").dxFilterBuilder({
        // ...
        fields: [{
            dataField: 'status', // a field from a data source to be filtered
            lookup: {
                dataSource: [ // contains values present in the dataField
                    'Not Started',
                    'Need Assistance',
                    'In Progress',
                    // ...
                ]
            }
        }]
    });
});
Angular
HTML
TypeScript
<dx-filter-builder>
    <dxi-field
        dataField="status"> <!-- a field from a data source to be filtered -->
        <dxo-lookup
            [dataSource]="lookupData"> <!-- contains values present in the dataField -->
        </dxo-lookup>
    </dxi-field>
</dx-filter-builder>
import { DxFilterBuilderModule } from "devextreme-angular";
// ...
export class AppComponent {
    lookupData = [
        'Not Started',
        'Need Assistance',
        'In Progress',
        // ...
    ];
}
@NgModule({
    imports: [
        // ...
        DxFilterBuilderModule
    ],
    // ...
})
Vue
App.vue
<template>
    <DxFilterBuilder>
        <DxField data-field="status"> <!-- a field from a data source to be filtered -->
            <DxLookup :data-source="lookupData" /> <!-- contains values present in the dataField -->
        </DxField>
    </DxFilterBuilder>
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import DxFilterBuilder, {
    DxField,
    DxLookup
} from 'devextreme-vue/filter-builder';

const lookupData = [
    'Not Started',
    'Need Assistance',
    'In Progress',
    // ...
];

export default {
    components: {
        DxFilterBuilder,
        DxField,
        DxLookup
    },
    data() {
        return {
            lookupData
        }
    }
}
</script>
React
App.js
import 'devextreme/dist/css/dx.light.css';

import FilterBuilder, {
    Field,
    Lookup
} from 'devextreme-react/filter-builder';

const lookupData = [
    'Not Started',
    'Need Assistance',
    'In Progress',
    // ...
];

export default function App() {
    return (
        <FilterBuilder>
            <Field dataField="status"> {/* a field from a data source to be filtered */}
                <Lookup dataSource={lookupData}> {/* contains values present in the dataField */}
            </Field>
        </FilterBuilder>
    );
}

... or a collection of objects that map actual filter values to display values.

jQuery
JavaScript
$(function () {
    $("#filterBuilder").dxFilterBuilder({
        // ...
        fields: [{
            dataField: "statusId", // a field from a data source to be filtered
            lookup: {
                dataSource: [
                    { id: 1, name: 'Not Started' },
                    { id: 2, name: 'Need Assistance' },
                    { id: 3, name: 'In Progress' },
                    // ...
                ],
                valueExpr: 'id', // contains values present in the dataField
                displayExpr: 'name' // provides display values
            }
        }]
    });
});
Angular
HTML
TypeScript
<dx-filter-builder>
    <dxi-field
        dataField="statusId"> <!-- a field from a data source to be filtered -->
        <dxo-lookup
            [dataSource]="statuses"
            valueExpr="id" <!-- contains values present in the dataField -->
            displayExpr="name"> <!-- provides display values -->
        </dxo-lookup>
    </dxi-field>
</dx-filter-builder>
import { DxFilterBuilderModule } from "devextreme-angular";
// ...
export class AppComponent {
    statuses = [
        { id: 1, name: 'Not Started' },
        { id: 2, name: 'Need Assistance' },
        { id: 3, name: 'In Progress' },
        // ...
    ];
}
@NgModule({
    imports: [
        // ...
        DxFilterBuilderModule
    ],
    // ...
})
Vue
App.vue
<template>
    <DxFilterBuilder>
        <DxField data-field="statusId"> <!-- a field from a data source to be filtered -->
            <DxLookup
                :data-source="statuses"
                value-expr="id" <!-- contains values present in the dataField -->
                display-expr="name" <!-- provides display values -->
            />
        </DxField>
    </DxFilterBuilder>
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import DxFilterBuilder, {
    DxField,
    DxLookup
} from 'devextreme-vue/filter-builder';

const statuses = [
    { id: 1, name: 'Not Started' },
    { id: 2, name: 'Need Assistance' },
    { id: 3, name: 'In Progress' },
    // ...
];

export default {
    components: {
        DxFilterBuilder,
        DxField,
        DxLookup
    },
    data() {
        return {
            statuses
        }
    }
}
</script>
React
App.js
import 'devextreme/dist/css/dx.light.css';

import FilterBuilder, {
    Field,
    Lookup
} from 'devextreme-react/filter-builder';

const statuses = [
    { id: 1, name: 'Not Started' },
    { id: 2, name: 'Need Assistance' },
    { id: 3, name: 'In Progress' },
    // ...
];

export default function App() {
    return (
        <FilterBuilder>
            <Field dataField="statusId"> {/* a field from a data source to be filtered */}
                <Lookup
                    dataSource={statuses}
                    valueExpr="id" {/* contains values present in the dataField */}
                    displayExpr="name" {/* provides display values */}
                />
            </Field>
        </FilterBuilder>
    );
}

View Demo
