React TreeList Props

Default Value: undefined

The value of this property will be passed to the accesskey attribute of the HTML element that underlies the UI component.

activeStateEnabled

Specifies whether the UI component changes its visual state as a result of user interaction.

Type:

Default Value: false

The UI component switches to the active state when users press down the primary mouse button. When this property is set to true, the CSS rules for the active state apply. You can change these rules to customize the component.

Use this property when you display the component on a platform whose guidelines include the active state change for UI components.

allowColumnReordering

Specifies whether a user can reorder columns.

Type:

Default Value: false

Initially, columns appear in the order specified by the columns array. If you skip specifying this array, columns will mirror the order of fields in the first object from the dataSource. You can allow a user to reorder columns at runtime by setting the allowColumnReordering property to true.

allowColumnResizing

Specifies whether a user can resize columns.

Type:

Default Value: false

By default, the width of each column depends on the width of the UI component and the total number of columns. You can allow a user to resize the columns at runtime by setting the allowColumnResizing property to true.

autoExpandAll

Specifies whether all rows are expanded initially.

Type:

Default Value: false

If you enable the autoExpandAll property, the TreeList ignores the remoteOperations property and loads all data to the client first. Sorting and filtering are executed in JavaScript code.

autoNavigateToFocusedRow

Automatically scrolls the component to the focused row when the focusedRowKey is changed.

Type:

Default Value: true

NOTE

You must specify the component's height to ensure that the autoNavigateToFocusedRow property works properly.

If you set the remoteOperations property to true, the TreeList generates additional requests with comparison operators (for example, < and >). This logic does not work if ODataStore is bound to a table with GUID keys. You need to disable the autoNavigateToFocusedRow or remoteOperations properties to ensure it operates correctly.

cacheEnabled

Specifies whether data should be cached.

Type:

Default Value: true

When this property is set to true, data loaded once is saved in cache. Then, the UI component takes data from this cache when performing such operations as sorting, grouping, paging, etc. Caching is helpful when the data source takes significant time to load. But, consider disabling it for frequently changing data sources.

To update data in cache, call the refresh() method of the UI component or the reload() method of the DataSource:

jQuery

JavaScript

$("#treeListContainer").dxTreeList("refresh");
// ===== or =====
const treeListDataSource = $("#treeListContainer").dxTreeList("getDataSource");
treeListDataSource.reload();

Angular

TypeScript

import { ..., ViewChild } from "@angular/core";
import { DxTreeListModule, DxTreeListComponent } from "devextreme-angular";
// ...
export class AppComponent {
    @ViewChild(DxTreeListComponent, { static: false }) treeList: DxTreeListComponent;
    // Prior to Angular 8
    // @ViewChild(DxTreeListComponent) treeList: DxTreeListComponent;
    refreshData () {
        this.treeList.instance.refresh();
        // ===== or =====
        const treeListDataSource = this.treeList.instance.getDataSource();
        treeListDataSource.reload();
    }
}
@NgModule({
    imports: [
        // ...
        DxTreeListModule
    ],
    // ...
})

Vue

App.vue

<template>
    <DxTreeList :ref="treeListRefKey">
        <!-- ... -->
    </DxTreeList>
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import DxTreeList from 'devextreme-vue/tree-list';

const treeListRefKey = "my-tree-list";

export default {
    components: {
        DxTreeList
    },
    data() {
        return {
            treeListRefKey
        }
    },
    methods: {
        refreshData() {
            this.treeList.refresh();
            // ===== or =====
            const treeListDataSource = this.treeList.getDataSource();
            treeListDataSource.reload();
        }
    },
    computed: {
        treeList: function() {
            return this.$refs[treeListRefKey].instance;
        }
    }
}
</script>

React

App.js

import React from 'react';

import 'devextreme/dist/css/dx.light.css';

import TreeList from 'devextreme-react/tree-list';

class App extends React.Component {
    constructor(props) {
        super(props);

        this.treeListRef = React.createRef();

        this.refreshData = () => {
            this.treeList.refresh();
            // ===== or =====
            const treeListDataSource = this.treeList.getDataSource();
            treeListDataSource.reload();
        }
    }

    get treeList() {
        return this.treeListRef.current.instance;
    }

    render() {
        return (
            <TreeList ref={this.treeListRef}>
                {/* ... */ }
            </TreeList>
        );
    }
}
export default App;

cellHintEnabled

Enables a hint that appears when a user hovers the mouse pointer over a cell with truncated content.

Type:

Default Value: true

The cell's content may be truncated if the width of the cell's column becomes very small. In this case, when a user hovers the mouse pointer over such a cell, a hint containing the cell's value appears. To disable cell hints, assign false to the cellHintEnabled property.

columnAutoWidth

Specifies whether columns should adjust their widths to the content.

Type:

Default Value: false

When this property is set to true, all columns adjust their width to the content.

If the TreeList is wider than its overall content, the columns are stretched to occupy all available width. To avoid this, set the columnWidth or columns.width property to "auto".

If the content is wider, the columnAutoWidth property set to true causes horizontal scrolling. You can set the allowHiding property to false for columns you want to be displayed continuously.

When the columnAutoWidth property is set to false, all columns have identical width, which in turn depends on the width of the UI component.

columnChooser

Configures the column chooser.

Selector: ColumnChooser

Type: common/grids:ColumnChooser

The column chooser allows a user to hide columns at runtime. To enable it, assign true to the columnChooser.enabled property.

DevExtreme HTML5 JavaScript jQuery Angular Knockout TreeList Column Chooser

columnFixing

Configures column fixing.

Selector: ColumnFixing

Type:

ColumnFixing

When the width of all columns exceeds the UI component width, horizontal scrolling appears. If specific columns should be on screen constantly regardless of how far the UI component is scrolled, allow a user to fix them at runtime using the context menu. For this, set the columnFixing.enabled property to true.

DevExtreme HTML5 JavaScript jQuery Angular Knockout TreeList Column Fixing

When you enable column fixing, command columns become fixed automatically.

columnHidingEnabled

Specifies whether the UI component should hide columns to adapt to the screen or container size. Ignored if allowColumnResizing is true and columnResizingMode is "widget".

Type:

Default Value: false

This property set to true makes the UI component hide certain columns automatically if all the columns do not fit the UI component's width. Columns with low hidingPriority are hidden first. These are the rightmost (leftmost if rtlEnabled is true) columns by default. Information from hidden columns is available in an adaptive detail row.

NOTE

If you set this property to true and columnResizingMode is set to 'nextColumn' (default), then also enable columnAutoWidth to ensure the component works properly.

columnMinWidth

Specifies the minimum width of columns.

Type:

Default Value: undefined

columnResizingMode

Specifies how the UI component resizes columns. Applies only if allowColumnResizing is true.

Type:

ColumnResizeMode

Default Value: 'nextColumn'

The columnResizingMode property accepts one of the following values:

nextColumn
When a user resizes a column, the width of the next column changes.
widget
When a user resizes a column, the width of the UI component changes.
This mode is ignored if you specify the width of any column in percent.

NOTE

If this property is set to 'nextColumn' (default) and you enable the columnHidingEnabled property, then also enable columnAutoWidth to ensure the component works properly.

columns[]

Configures columns.

Selector: Column

Type:

Array<TreeList Column | String>

Default Value: undefined

Raised Events: onOptionChanged

This property accepts an array of objects, where each object configures a single column. If a column does not need to be customized, this array may include the name of the field that provides data for this column.

jQuery

JavaScript

$(function() {
    $("#treeListContainer").dxTreeList({
        // ...
        columns: [{
            dataField: "Title",
            caption: "Position"
        }, {
            dataField: "FullName",
            width: 300
        },
            "CompanyName",
            "City"
        ]
    });
});

Angular

HTML

TypeScript

<dx-tree-list ... >
    <dxi-column dataField="Title" caption="Position"></dxi-column>
    <dxi-column dataField="FullName" [width]="300"></dxi-column>
    <dxi-column dataField="CompanyName"></dxi-column>
    <dxi-column dataField="City"></dxi-column>
</dx-tree-list>

import { DxTreeListModule } from "devextreme-angular";
// ...
export class AppComponent {
    // ...
}
@NgModule({
    imports: [
        // ...
        DxTreeListModule
    ],
    // ...
})

Vue

App.vue

<template>
    <DxTreeList ... >
        <DxColumn
            data-field="Title"
            caption="Position"
        />
        <DxColumn
            data-field="FullName"
            :width="300"
        />
        <DxColumn
            data-field="CompanyName"
        />
        <DxColumn
            data-field="City"
        />
    </DxTreeList>
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import DxTreeList, {
    DxColumn
} from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList,
        DxColumn
    },
    // ...
}
</script>

React

App.js

import 'devextreme/dist/css/dx.light.css';

import TreeList, {
    Column
} from 'devextreme-react/tree-list';

export default function App() {
    return (
        <TreeList>
            <Column
                dataField="Title"
                caption="Position"
            />
            <Column
                dataField="FullName"
                width={300}
            />
            <Column
                dataField="CompanyName"
            />
            <Column
                dataField="City"
            />
        </TreeList>
    );
}

columnWidth

Specifies the width for all data columns. Has a lower priority than the column.width property.

Type:

|

Mode

Default Value: undefined

customizeColumns

Customizes columns after they are created.

Type:

Function parameters:

columns:

Array<TreeList Column>

All column configurations.

Use this function to make minor adjustments to automatically generated columns. You can access and modify column configurations using the function's parameter.

jQuery

JavaScript

$(function(){
    $("#treeList").dxTreeList({
        // ...
        customizeColumns: function (columns) {
            columns[0].width = 100;
            columns[1].width = 210;
        }
    })
});

Angular

TypeScript

HTML

import { DxTreeListModule } from "devextreme-angular";
// ...
export class AppComponent {
    customizeColumns (columns) {
        columns[0].width = 100;
        columns[1].width = 210;
    }
}
@NgModule({
    imports: [
        // ...
        DxTreeListModule
    ],
    // ...
})

<dx-tree-list ...
    [customizeColumns]="customizeColumns">
</dx-tree-list>

Vue

App.vue

<template>
    <DxTreeList ...
        :customize-columns="customizeColumns">
    />
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import DxTreeList, {
    // ...
} from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList
    },
    methods: {
        customizeColumns(columns) {
            columns[0].width = 100;
            columns[1].width = 210;
        }
    }
}
</script>

React

App.js

import React from 'react';

import 'devextreme/dist/css/dx.light.css';

import TreeList, {
    // ...
} from 'devextreme-react/tree-list';

class App extends React.Component {
    customizeColumns = (columns) => {
        columns[0].width = 100;
        columns[1].width = 210;
    }

    render() {
        return (
            <TreeList ...
                customizeColumns={this.customizeColumns}
            />
        );
    }
}
export default App;

ASP.NET MVC Controls

Razor C#

@(Html.DevExtreme().TreeList()
    // ...
    .CustomizeColumns("customizeColumns")
)
<script>
    function customizeColumns(columns) {
        columns[0].width = 100;
        columns[1].width = 210;
    }
</script>

NOTE

Data operations (sorting, filtering, summary) are unavailable for the columns created via customizeColumns. To create a fully functioning column, add it to the columns array.

React

Note that the [elementName]Render and [elementName]Component (for example, the cellRender and cellComponent) do not work within the customizeColumn function. Instead, use the columns array.

App.js

import React from 'react';

import 'devextreme/dist/css/dx.light.css';

import TreeList, {
    // ...
} from 'devextreme-react/tree-list';

class App extends React.Component {
    customizeColumns = (columns) => {
        // ...
        // This code does not work
        // columns[0].cellRender = cellRender;
    }

    render() {
        return (
            <TreeList ...
                customizeColumns={this.customizeColumns}
            >
                <!-- ... -->
                <Column
                    dataField="Picture"
                    cellRender={cellRender} <!-- This code works correctly -->
                />
            </TreeList>
        );
    }
}

function cellRender(data) {
    return <img src={data.value} />;
}

export default App;

dataSource

Binds the UI component to data.

Type:

Store

|

DataSource

|

DataSource Configuration

|

|

Array<any>

| null

Default Value: null

The TreeList works with object collections that can have a plain or hierarchical structure. Depending on the structure, the objects should provide different data fields. Specify the dataStructure property to notify the TreeList of the used structure and refer to the property's description for information on the required fields.

Depending on your data source, bind the TreeList to data as follows.

Data Array
Assign the array to the dataSource option. View Demo
Read-Only Data in JSON Format
Set the dataSource property to the URL of a JSON file or service that returns JSON data.
OData
Implement an ODataStore.

Web API, PHP, MongoDB
Use one of the following extensions to enable the server to process data according to the protocol DevExtreme UI components use:

Then, use the createStore method to configure access to the server on the client as shown below. This method is part of DevExtreme.AspNet.Data.

jQuery

JavaScript

$(function() {
    let serviceUrl = "https://url/to/my/service";
    $("#treeListContainer").dxTreeList({
        // ...
        dataSource: DevExpress.data.AspNet.createStore({
            key: "ID",
            loadUrl: serviceUrl + "/GetAction",
            insertUrl: serviceUrl + "/InsertAction",
            updateUrl: serviceUrl + "/UpdateAction",
            deleteUrl: serviceUrl + "/DeleteAction"
        })
    })
});

Angular

app.component.ts

app.component.html

app.module.ts

import { Component } from '@angular/core';
import CustomStore from 'devextreme/data/custom_store';
import { createStore } from 'devextreme-aspnet-data-nojquery';

@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
    styleUrls: ['./app.component.css']
})
export class AppComponent {
    store: CustomStore;
    constructor() {
        let serviceUrl = "https://url/to/my/service";
        this.store = createStore({
            key: "ID",
            loadUrl: serviceUrl + "/GetAction",
            insertUrl: serviceUrl + "/InsertAction",
            updateUrl: serviceUrl + "/UpdateAction",
            deleteUrl: serviceUrl + "/DeleteAction"
        })
    }
}

<dx-tree-list ...
    [dataSource]="store">
</dx-tree-list>

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { AppComponent } from './app.component';

import { DxTreeListModule } from 'devextreme-angular';

@NgModule({
    declarations: [
        AppComponent
    ],
    imports: [
        BrowserModule,
        DxTreeListModule
    ],
    providers: [],
    bootstrap: [AppComponent]
})
export class AppModule { }

Vue

App.vue

<template>
    <DxTreeList ...
        :data-source="store" />
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import CustomStore from 'devextreme/data/custom_store';
import { createStore } from 'devextreme-aspnet-data-nojquery';
import { DxTreeList } from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList
    },
    data() {
        const serviceUrl = "https://url/to/my/service";
        const store = createStore({
            key: "ID",
            loadUrl: serviceUrl + "/GetAction",
            insertUrl: serviceUrl + "/InsertAction",
            updateUrl: serviceUrl + "/UpdateAction",
            deleteUrl: serviceUrl + "/DeleteAction"
        });
        return {
            store
        }
    }
}
</script>

React

App.js

import React from 'react';
import 'devextreme/dist/css/dx.light.css';

import CustomStore from 'devextreme/data/custom_store';
import { createStore } from 'devextreme-aspnet-data-nojquery';
import TreeList from 'devextreme-react/tree-list';

const serviceUrl = "https://url/to/my/service";
const store = createStore({
    key: "ID",
    loadUrl: serviceUrl + "/GetAction",
    insertUrl: serviceUrl + "/InsertAction",
    updateUrl: serviceUrl + "/UpdateAction",
    deleteUrl: serviceUrl + "/DeleteAction"
});

class App extends React.Component {
    render() {
        return (
            <TreeList ...
                dataSource={store} />
        );
    }
}
export default App;

Any other data source
Implement a CustomStore.

Regardless of the data source on the input, the TreeList always wraps it in the DataSource object. This object allows you to sort, filter, group, and perform other data shaping operations. To get its instance, call the getDataSource() method.

NOTE

Review the following notes about data binding:

Data field names cannot be equal to this and should not contain the following characters: ., :, [, and ].
If the TreeList UI component gets data from a server, configure remoteOperations to notify the UI component about data operations the server performs.
Selection works incorrectly with mapped data objects. Use calculated columns instead of mapping.

jQuery

The stores are immutable. You cannot change their configurations at runtime. Instead, create a new store or DataSource and assign it to the dataSource property as shown in the following help topic: Get and Set Properties.

Angular

The stores are immutable. You cannot change their configurations at runtime. Instead, create a new store or DataSource and assign it to the dataSource property as shown in the following help topic: Two-Way Property Binding.

Vue

The stores are immutable. You cannot change their configurations at runtime. Instead, create a new store or DataSource and assign it to the dataSource property as shown in the following help topic: Two-Way Property Binding.

React

The stores are immutable. You cannot change their configurations at runtime. Instead, create a new store or DataSource and assign it to the dataSource property as shown in the following help topic: Controlled Mode.

dataStructure

Notifies the UI component of the used data structure.

Type:

DataStructure

Default Value: 'plain'

The UI component expects that data has a plain structure where:

each data item contains a parentId and a unique id;
data items of the highest hierarchical level have parentId equal to 0, null or undefined. It indicates that these data items descend from the root node. The root node does not have a visual representation.

JavaScript

var treeListData = [
    { id: 1, parentId: 0 },
    { id: 11, parentId: 1 },
    { id: 12, parentId: 1 },
    { id: 13, parentId: 1 },
    { id: 131, parentId: 13 },
    { id: 132, parentId: 13 },
    { id: 133, parentId: 13 },
    { id: 2, parentId: 0 }
];

Specify the keyExpr and parentIdExpr if parentId and id are called differently in your dataset. You can also change the root node's ID from 0 via the rootValue property.

If data has a hierarchical structure, set the dataStructure property to "tree". Parent and item IDs will be generated automatically. Data items that nest other data items should have an items field:

JavaScript

var treeListData = [{
    text: "item1",
    items: [{
        text: "item11"
    }, {
        text: "item12",
        items: [
            { text: "item121" },
            { text: "item122" }
        ]
    }]
}, {
    text: "item2"
}];

If the items field is called differently in your dataset, specify the itemsExpr property.

If each data item has a Boolean field that specifies whether this data item nests other items, assign the field's name to the hasItemsExpr property. The UI component uses this information to render the expand button. This is required only if the UI component is bound to a remote data source.

Editing does not work with hierarchical data sources out of the box, but you can use the code sample from the following example to implement it:

View on GitHub

dateSerializationFormat

Specifies the format in which date-time values should be sent to the server.

Type:

Specify this property in the following cases:

The dataSource is empty or not set at design time. The dateSerializationFormat is needed, because the TreeList cannot detect it automatically without a data source.
You use the createStore method from the DevExtreme.AspNet.Data extension and remote date-time values are specified in UTC. DevExtreme.AspNet.Data requires the dateSerializationFormat to correctly serialize these values.

Use one of the following values to specify the dateSerializationFormat property:

"yyyy-MM-dd" - local date
"yyyy-MM-ddTHH:mm:ss" - local date and time
"yyyy-MM-ddTHH:mm:ssZ" - UTC date and time
"yyyy-MM-ddTHH:mm:ssx", "yyyy-MM-ddTHH:mm:ssxx", "yyyy-MM-ddTHH:mm:ssxxx" - date and time with a timezone

This property applies only if the forceIsoDateParsing field is set to true in the global configuration object.

disabled

Specifies whether the UI component responds to user interaction.

Type:

Default Value: false

editing

Configures editing.

Selector: Editing

Type:

Editing

The UI component allows a user to edit data in several modes, which are detailed in the mode property. To define what editing operations a user can perform, specify the allowAdding, allowUpdating and allowDeleting properties. Before enabling an operation, make sure that your data source supports it.

NOTE

Editing does not work with hierarchical data sources out of the box, but you can use the code sample from this KB to implement it.

elementAttr

Specifies the global attributes to be attached to the UI component's container element.

Selector: ElementAttr

Type:

Object

Default Value: {}

jQuery

$(function(){
    $("#treeListContainer").dxTreeList({
        // ...
        elementAttr: {
            id: "elementId",
            class: "class-name"
        }
    });
});

Angular

HTML

TypeScript

<dx-tree-list ...
    [elementAttr]="{ id: 'elementId', class: 'class-name' }">
</dx-tree-list>

import { DxTreeListModule } from "devextreme-angular";
// ...
export class AppComponent {
    // ...
}
@NgModule({
    imports: [
        // ...
        DxTreeListModule
    ],
    // ...
})

Vue

App.vue

<template>
    <DxTreeList ...
        :element-attr="treeListAttributes">
    </DxTreeList>
</template>

<script>
import DxTreeList from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList
    },
    data() {
        return {
            treeListAttributes: {
                id: 'elementId',
                class: 'class-name'
            }
        }
    }
}
</script>

React

App.js

import React from 'react';

import TreeList from 'devextreme-react/tree-list';

class App extends React.Component {
    treeListAttributes = {
        id: 'elementId',
        class: 'class-name'
    }

    render() {
        return (
            <TreeList ...
                elementAttr={this.treeListAttributes}>
            </TreeList>
        );
    }
}
export default App;

errorRowEnabled

Indicates whether to show the error row.

Type:

Default Value: true

The error row displays data-related errors that may occur on the server during the UI component's runtime. Setting this property to false hides the error row, but the errors can still be viewed in the browser's console.

expandedRowKeys

Specifies keys of the initially expanded rows.

Type:

Array<any>

Default Value: []

Raised Events: onOptionChanged

Setting this property expands only the specified rows, but not their parents. If a to-be-expanded row lies deep in the hierarchy, make sure to include keys of all rows that nest it.

expandNodesOnFiltering

Specifies whether nodes appear expanded or collapsed after filtering is applied.

Type:

FilterBuilder Configuration

Default Value: true

filterBuilder

Configures the integrated filter builder.

Selector: FilterBuilder

Type:

Default Value: {}

See the FilterBuilder configuration for properties that you can specify in this object. Do not specify the fields array because the TreeList automatically populates it to sync filter builder fields with grid columns.

Angular

NOTE

The nested component that configures the filterBuilder property does not support event bindings and two-way property bindings.

Vue

NOTE

The nested component that configures the filterBuilder property does not support event bindings and two-way property bindings.

filterBuilderPopup

Configures the popup in which the integrated filter builder is shown.

Selector: FilterBuilderPopup

Type:

Popup Configuration

Default Value: {}

See the Popup configuration for properties that you can specify in this object.

Angular

NOTE

The nested component that configures the filterBuilderPopup property does not support event bindings and two-way property bindings.

Vue

NOTE

The nested component that configures the filterBuilderPopup property does not support event bindings and two-way property bindings.

filterMode

Specifies whether filter and search results should include matching rows only, matching rows with ancestors, or matching rows with ancestors and descendants (full branch).

Type:

TreeListFilterMode

Default Value: 'withAncestors'

filterPanel

Configures the filter panel.

Selector: FilterPanel

Type:

FilterPanel

Default Value: {}

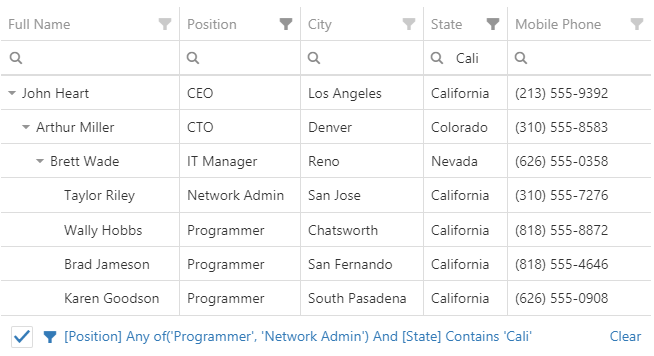

The filter panel displays the applied filter expression.

DevExtreme HTML5 JavaScript jQuery Angular Knockout TreeList Filter Panel

Clicking on the filter expression opens the filter builder.

DevExtreme HTML5 JavaScript jQuery Angular Knockout TreeList Filter Panel

If you change the filter expression in the filter panel or filter builder, the changes are reflected in the filter row and header filter, and vice versa. You can disable this synchronization by setting the filterSyncEnabled property to false. In this case, the filter panel remains synchronized with the filter builder.

NOTE

If the filter panel is visible and at least one column includes headerFilter.dataSource or lookup.dataSource, disable the syncLookupFilterValues property. Otherwise, the filter panel may not display data correctly.

filterRow

Configures the filter row.

Selector: FilterRow

Type:

FilterRow

The filter row allows a user to filter data by values of individual columns.

DevExtreme HTML5 JavaScript jQuery Angular Knockout TreeList FilterRow

Each cell in the filter row contains a magnifying glass icon. Hovering over this icon opens a drop-down list with filters available for the column.

DevExtreme HTML5 JavaScript jQuery Angular Knockout TreeList FilterRow

To make the filter row visible, assign true to the filterRow.visible property.

NOTE

If you use a grouped data structure to display data in a lookup column, the All item in the filter row is not displayed.

filterSyncEnabled

Specifies whether to synchronize the filter row, header filter, and filter builder. The synchronized filter expression is stored in the filterValue property.

Type:

|

Mode

Default Value: 'auto'

Synchronization is enabled if the filter panel is visible. When it is enabled, check that each column that allows filter operations has the dataField or name property specified.

filterValue

Specifies a filter expression.

Type:

Filter Expression

Default Value: null

Raised Events: onOptionChanged

If filterSyncEnabled is true, the filter expression includes a combination of the filter row, header filter, and filter builder filters. Otherwise, it contains only the filter builder filter.

Note that you should convert date strings into JavaScript Date objects before using them in the filter expression.

The filter expression can contain the following operations: "=", "<>", "<", ">", "<=", ">=", "between", "contains", "notcontains", "startswith", "endswith", "anyof", "noneof", and the filter builder's custom operations. Use "anyof" and "noneof" to select and clear the selection of items in the header filter's popup menu. In the following code, "anyof" is used to select items with IDs 500 and 700:

jQuery

JavaScript

$(function() {
    $("#treeListContainer").dxTreeList({
        // ...
        filterSyncEnabled: true,
        headerFilter: { visible: true },
        filterValue: ["ID", "anyof", [500, 700]],
    })
});

Angular

HTML

TypeScript

<dx-tree-list ...
    [filterSyncEnabled]="true"
    [filterValue]="['ID', 'anyof', [500, 700]]">
    <dxo-header-filter
        [visible]="true">
    </dxo-header-filter>
</dx-tree-list>

import { DxTreeListModule } from "devextreme-angular";
// ...
export class AppComponent {
    // ...
}
@NgModule({
    imports: [
        // ...
        DxTreeListModule
    ],
    // ...
})

Vue

App.vue

<template>
    <DxTreeList ...
        :filter-sync-enabled="true"
        :filter-value="filterValue">
        <DxHeaderFilter :visible="true" />
    </DxTreeList>
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import DxTreeList, {
    DxHeaderFilter,
    // ...
} from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList,
        DxHeaderFilter,
        // ...
    },
    data() {
        return {
            filterValue: ['ID', 'anyof', [500, 700]]
        }
    }
}
</script>

React

App.js

import React from 'react';

import 'devextreme/dist/css/dx.light.css';

import TreeList, {
    HeaderFilter,
    // ...
} from 'devextreme-react/tree-list';

const filterValue = ['ID', 'anyof', [500, 700]];

class App extends React.Component {
    render() {
        return (
            <TreeList ...
                filterSyncEnabled={true}
                defaultFilterValue={filterValue}>
                <HeaderFilter visible={true} />
            </TreeList>
        );
    }
}
export default App;

ASP.NET MVC Controls

Razor C#

@(Html.DevExtreme().DataGrid()
    // ...
    .FilterSyncEnabled(true)
    .HeaderFilter(hf => hf.Visible(true))
    .FilterValue("['ID', 'anyof', [500, 700]]")
)

If a column's groupInterval property is set, the "anyof" and "noneof" operations for this column accept the beginning of intervals instead of exact values:

jQuery

JavaScript

$(function() {
    $("#treeListContainer").dxTreeList({
        // ...
        headerFilter: { visible: true },
        filterValue: ["ID", "anyof", [500, 700]], // Filter intervals are 500-600 and 700-800
        columns: [{
            dataField: "ID",
            dataType: "number",
            headerFilter: { groupInterval: 100 }
        },
        // ...
        ]
    })
});

Angular

HTML

TypeScript

<dx-tree-list ...
    <!-- Filter intervals are 500-600 and 700-800 -->
    [(filterValue)]="['ID', 'anyof', [500, 700]]">
        <dxo-header-filter
            [visible]="true">
        </dxo-header-filter>
        <dxi-column
            dataField="ID"
            dataType="number">
                <dxo-header-filter
                    [groupInterval]="100">
                </dxo-header-filter>
        </dxi-column>
</dx-tree-list>

import { DxTreeListModule } from "devextreme-angular";
// ...
export class AppComponent {
    // ...
}
@NgModule({
    imports: [
        // ...
        DxTreeListModule
    ],
    // ...
})

Vue

App.vue

<template>
    <DxTreeList ...
        <!-- Filter intervals are 500-600 and 700-800 -->
        :filter-value="filterValue">
        <DxHeaderFilter :visible="true" />
        <DxColumn
            data-field="ID"
            data-type="number">
            <DxColumnHeaderFilter :group-interval="100" />
        </DxColumn>
    </DxTreeList>
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import DxTreeList, {
    DxColumn,
    DxHeaderFilter,
    DxColumnHeaderFilter,
    // ...
} from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList,
        DxColumn,
        DxHeaderFilter,
        DxColumnHeaderFilter,
        // ...
    },
    data() {
        return {
            filterValue: ['ID', 'anyof', [500, 700]]
        }
    }
}
</script>

React

App.js

import React from 'react';

import 'devextreme/dist/css/dx.light.css';

import TreeList, {
    Column,
    HeaderFilter,
    ColumnHeaderFilter,
    // ...
} from 'devextreme-react/tree-list';

const filterValue = ['ID', 'anyof', [500, 700]];

class App extends React.Component {
    render() {
        return (
            <TreeList ...
                {/* Filter intervals are 500-600 and 700-800 */}
                defaultFilterValue={filterValue}>
                <HeaderFilter visible={true} />
                <Column
                    dataField="ID"
                    dataType="number">
                    <ColumnHeaderFilter groupInterval={100} />
                </Column>
            </TreeList>
        );
    }
}
export default App;

ASP.NET MVC Controls

Razor C#

@(Html.DevExtreme().DataGrid()
    // ...
    // Filter intervals are 500-600 and 700-800
    .HeaderFilter(headerFilter => headerFilter.Visible(true))
    .FilterValue("['ID', 'anyof', [500, 700]]")
    .Columns(columns => {
        columns.AddFor(m => m.ID)
            .DataType(GridColumnDataType.Number)
            .HeaderFilter(hf => hf.GroupInterval(100));
        // ...
    })
)

NOTE

The DataSource does not support the "between", "anyof", "noneof", and custom operations. Use the getCombinedFilter(returnDataField) method to get the DataSource-compatible filter expression.

focusedColumnIndex

The index of the column that contains the focused data cell. This index is taken from the columns array.

Type:

Default Value: -1

Raised Events: onFocusedCellChanged

Unlike banded columns, Band columns cannot be focused.

The default index, -1, means that no column is focused.

focusedRowEnabled

Specifies whether the focused row feature is enabled.

Type:

Default Value: false

When this property is set to true, the following applies:

Rows are initially sorted by keys if any field of remoteOperations is true.
The row with focusedRowIndex or focusedRowKey is highlighted.
When the data row area is focused, this row is focused and the area is scrolled down to it.
The onFocusedRowChanging and onFocusedRowChanged functions become active.

NOTE

Specify the UI component's keyExpr or the Store's key property to ensure that the focused row feature works properly.

DataGrid generates additional requests with comparison operators (for example, < and >) to calculate the page number where a row with a focused key is located. This logic does not work for certain key types (for example, GUID) and data providers (for example, ODataStore). You need to disable the autoNavigateToFocusedRow property or set remoteOperations to false to ensure it operates correctly.

focusedRowIndex

Specifies or indicates the focused data row's index.

Type:

Default Value: -1

Raised Events: onFocusedRowChanged

The focused row has a key and index on a page. When the pager is used for navigation, the focused row's index persists from page to page, but corresponds to a different row with a different key on each page.

The default index of -1 indicates that no row is focused.

The focusedRowKey takes precedence over the focusedRowIndex when both are specified.

focusedRowKey

Specifies initially or currently focused grid row's key.

Type: any

Default Value: undefined

Raised Events: onFocusedRowChanged

The focused row has a key and index on a page. When the pager is used for navigation, the focused row's index persists from page to page but corresponds to a different row with a different key on each page.

In the DataGrid, group rows can also be focused. See the Group Index and Key topic for more information on how group keys are formed.

hasItemsExpr

Specifies which data field defines whether the node has children.

Type:

|

If you load data from the server, you need to set this property so that the UI component does not render the expand button for nodes without children.

headerFilter

Configures the header filter feature.

Selector: HeaderFilter

Type:

HeaderFilter

A header filter allows a user to filter values in an individual column by including/excluding them in/from the applied filter. A click on a header filter icon invokes a popup menu with all unique values in the column. By selecting or clearing the selection of values in this menu, the user includes/excludes them in/from the filter.

DevExtreme HTML5 JavaScript jQuery Angular Knockout UI component TreeList HeaderFilter

To make header filter icons visible, assign true to the headerFilter.visible property.

A header filter's popup menu lists all column values. If they are numbers or dates, you can group them using the groupInterval property in the column's headerFilter. You can also provide a custom data source for a header filter using the dataSource property.

The user's filtering preferences are saved in the filterValues property. The header filter's Select All checkbox changes the filterType property.

height

Specifies the UI component's height.

Type:

|

|

Return Value:

|

The UI component's height.

Default Value: undefined

This property accepts a value of one of the following types:

Number
The height in pixels.
String
A CSS-accepted measurement of height. For example, "55px", "20vh", "80%", "inherit".
Function (deprecated since v21.2)
Refer to the W0017 warning description for information on how you can migrate to viewport units.

highlightChanges

Specifies whether to highlight rows and cells with edited data. repaintChangesOnly should be true.

Type:

Collaborative Editing Demo SignalR Service Demo

Default Value: false

You can change the following CSS rules and classes that control highlighting:

CSS

@keyframes dx-treelist-highlight-change {
    from {
        background-color: #efefef;
    }
    50% {
        background-color: #efefef;
    }
}
.dx-treelist-cell-updated-animation {
    animation: dx-treelist-highlight-change 1s;
}
.dx-treelist-row-inserted-animation {
    animation: dx-treelist-highlight-change 1s;
}

hint

Specifies text for a hint that appears when a user pauses on the UI component.

Type:

Default Value: undefined

hoverStateEnabled

Specifies whether to highlight rows when a user moves the mouse pointer over them.

Type:

Default Value: false

itemsExpr

Specifies which data field contains nested items. Set this property when your data has a hierarchical structure.

Type:

|

Default Value: 'items'

keyboardNavigation

Configures keyboard navigation.

Selector: KeyboardNavigation

Type:

KeyboardNavigation

keyExpr

Specifies the key property (or properties) that provide(s) key values to access data items. Each key value must be unique.

Type:

|

Default Value: 'id'

loadPanel

Configures the load panel.

Selector: LoadPanel

Type:

LoadPanel

The load panel is displayed while the UI component loads data. It consists of a loading indicator and text, both placed on a pane.

DevExtreme HTML5 JavaScript jQuery Angular Knockout UI component DataGrid TreeList LoadPanel

Since the load panel is, in fact, the DevExtreme LoadPanel UI component, the loadPanel object can contain any properties of this UI component along with properties described here.

noDataText

Specifies a text string shown when the TreeList does not display any data.

Type:

Default Value: 'No data'

onAdaptiveDetailRowPreparing

A function that is executed before an adaptive detail row is rendered.

Type:

AdaptiveDetailRowPreparingEvent

Function parameters:

e:

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
formOptions	Object	The properties of the Form UI component.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

Adaptive detail rows display information from columns that were hidden when the UI component adapted to the screen or container size. Each adaptive detail row contains the Form UI component that you can customize within the onAdaptiveDetailRowPreparing function using the formOptions object. Refer to the Form Configuration section for details on properties of the Form UI component.

NOTE

The following Form properties cannot be specified using formOptions:

template
editorType
any event handler (properties whose name starts with "on...")

jQuery

JavaScript

$(function() {
    $("#treeListContainer").dxTreeList({
        // ...
        onAdaptiveDetailRowPreparing: function(e) {
            e.formOptions.colCount = 2;
            e.formOptions.colCountByScreen = {
                xs: 2
            }
            e.formOptions.labelLocation = 'left';
        }
    })
})

Angular

TypeScript

HTML

import { DxTreeListModule } from "devextreme-angular";
// ...
export class AppComponent {
    onAdaptiveDetailRowPreparing(e) {
        e.formOptions.colCount = 2;
        e.formOptions.colCountByScreen = {
            xs: 2
        }
        e.formOptions.labelLocation = 'left';
    }
}
@NgModule({
    imports: [
        // ...
        DxTreeListModule
    ],
    // ...
})

<dx-tree-list ...
    (onAdaptiveDetailRowPreparing)="onAdaptiveDetailRowPreparing($event)">
</dx-tree-list>

Vue

App.vue (Options API)

App.vue (Composition API)

<template>
    <DxTreeList
        @adaptive-detail-row-preparing="onAdaptiveDetailRowPreparing"
    />
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import TreeList from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList
    },
    methods: {
        onAdaptiveDetailRowPreparing(e) {
            e.formOptions.colCount = 2;
            e.formOptions.colCountByScreen = {
                xs: 2
            }
            e.formOptions.labelLocation = 'left';
        }
    }
}
</script>

<template>
    <DxTreeList
        @adaptive-detail-row-preparing="onAdaptiveDetailRowPreparing"
    />
</template>

<script setup>
import 'devextreme/dist/css/dx.light.css';

import TreeList from 'devextreme-vue/tree-list';

const onAdaptiveDetailRowPreparing = (e) => {
    e.formOptions.colCount = 2;
    e.formOptions.colCountByScreen = {
        xs: 2
    }
    e.formOptions.labelLocation = 'left';
}
</script>

React

App.js

import { useCallback } from 'react';

import 'devextreme/dist/css/dx.light.css';

import TreeList from 'devextreme-react/tree-list';

export default function App() {
    const onAdaptiveDetailRowPreparing = useCallback((e) => {
        e.formOptions.colCount = 2;
        e.formOptions.colCountByScreen = {
            xs: 2
        }
        e.formOptions.labelLocation = 'left';
    }, []);

    return (
        <TreeList
            onAdaptiveDetailRowPreparing={onAdaptiveDetailRowPreparing}
        />
    );
}

onCellClick

A function that is executed when a cell is clicked or tapped. Executed before onRowClick.

Type:

Function parameters:

e:

CellClickEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
cellElement	HTMLElement \| jQuery	The cell's container. It is an HTML Element or a jQuery Element when you use jQuery.
column	TreeList Column	This column's configuration.
columnIndex	Number	The index of the column to which the cell belongs.
component	TreeList	The UI component's instance.
data	Object	The data of the row to which the cell belongs. Available if the rowType is "data", "detail" or "detailAdaptive".
displayValue	any	The cell's displayed value. Available if the rowType is "data". Differs from the value field only when the cell belongs to the lookup column.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
event	Event (jQuery or EventObject)	The event that caused the function to execute. It is an EventObject or a jQuery.Event when you use jQuery.
key	any	The row's key. Available if the rowType is "data", "detail" or "detailAdaptive". For plain data, the key value depends on the keyExpr property. For hierarchical data, the key is generated automatically or set in the underlying Store of the data source.
model	any	Model data. Available only if you use Knockout.
row	TreeList Row	The row properties. Available if the rowType is "data", "detail" or "detailAdaptive".
rowIndex	Number	The index of the row to which the cell belongs. Refer to Column and Row Indexes for more information.
rowType	String	The row's type.
text	String	The cell's formatted value converted to a string. Available if the rowType is "data".
value	any	The cell's raw value. Available if the rowType is "data".

Default Value: null

onCellDblClick

A function that is executed when a cell is double-clicked or double-tapped. Executed before onRowDblClick.

Type:

Function parameters:

e:

CellDblClickEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
cellElement	HTMLElement \| jQuery	The cell's container. It is an HTML Element or a jQuery Element when you use jQuery.
column	TreeList Column	The column's configuration.
columnIndex	Number	The index of the column the cell belongs to.
component	TreeList	The UI component's instance.
data	Object	The data of the row the cell belongs to. Available if the rowType is "data", "detail" or "detailAdaptive".
displayValue	any	The value displayed in the cell. Available if the rowType is "data". Differs from the value field only when the cell belongs to a lookup column.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
event	Event (jQuery or EventObject)	The event that caused the function to execute. It is an EventObject or a jQuery.Event when you use jQuery.
key	any	The row's key. Available if the rowType is "data", "detail" or "detailAdaptive".
model	any	Model data. Available only if you use Knockout.
row	TreeList Row	The row's properties. Available if the rowType is "data", "detail" or "detailAdaptive".
rowIndex	Number	The index of the row the cell belongs to. Refer to Column and Row Indexes for more information.
rowType	String	The row's type.
text	String	The cell's formatted value converted to a string. Available if the rowType is "data".
value	any	The cell's raw value. Available if the rowType is "data".

Default Value: null

onCellHoverChanged

A function that is executed after the pointer enters or leaves a cell.

Type:

Function parameters:

e:

CellHoverChangedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
cellElement	HTMLElement \| jQuery	The cell's container. It is an HTML Element or a jQuery Element when you use jQuery.
column	TreeList Column	This column's configuration.
columnIndex	Number	The index of the column to which the cell belongs.
component	TreeList	The UI component's instance.
data	Object	The data of the row to which the cell belongs. Available if the rowType is "data", "detail" or "detailAdaptive".
displayValue	any	The cell's displayed value. Available if the rowType is "data". Differs from the value field only when the cell belongs to the lookup column.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
eventType	String	Indicates whether the pointer entered or left the cell. Can be either "mouseover" or "mouseout".
key	any	The row's key. Available if the rowType is "data", "detail" or "detailAdaptive". For plain data, the key value depends on the keyExpr property. For hierarchical data, the key is generated automatically or set in the underlying Store of the data source.
model	any	Model data. Available only if you use Knockout.
row	TreeList Row	The row properties. Available if the rowType is "data", "detail" or "detailAdaptive".
rowIndex	Number	The index of the row to which the cell belongs. Refer to Column and Row Indexes for more information.
rowType	String	The row's type.
text	String	The cell's formatted value converted to a string. Available if the rowType is "data".
value	any	The cell's raw value. Available if the rowType is "data".

Default Value: null

To identify whether the pointer has entered or left the cell, check the eventType field's value.

onCellPrepared

A function that is executed after a grid cell is created.

Type:

Function parameters:

e:

CellPreparedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
cellElement	HTMLElement \| jQuery	The cell's container. It is an HTML Element or a jQuery Element when you use jQuery.
column	TreeList Column	This column's configuration.
columnIndex	Number	The visible column index described in the following topic: Column and Row Indexes.
component	TreeList	The UI component's instance.
data	Object	The data of the row to which the cell belongs. Available if the rowType is "data", "detail", or "detailAdaptive".
displayValue	any	The cell's displayed value. Available if the rowType is "data". Differs from the value field only when the column to which the prepared cell belongs uses lookup.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
isExpanded	Boolean	Indicates whether the row is expanded or collapsed. Available if rowType is "data".
isNewRow	Boolean	Indicates that the row is added, but not yet saved. Available if rowType is "data".
isSelected	Boolean	Indicates whether the row is selected. Available if rowType is "data" or "detail".
key	any	The row's key. Available if the rowType is "data", "detail" or "detailAdaptive". For plain data, the key value depends on the keyExpr property. For hierarchical data, the key is generated automatically or set in the underlying Store of the data source.
model	any	Model data. Available only if you use Knockout.
oldValue	any	The cell's previous raw value. Defined only if repaintChangesOnly is true.
row	TreeList Row	The row properties.
rowIndex	Number	The row's index. Refer to Column and Row Indexes for more information.
rowType	String	The row's type.
text	String	The cell's formatted value converted to a string. Available if the rowType is "data".
value	any	The cell's raw value. Available if the rowType is "data".
watch	Function	Allows you to track a variable and execute actions when it changes. Applies when repaintChangesOnly is true. This function has the following parameters: getter(data): Function A function that returns the variable that should be tracked. handler(newValue): Function A function called when this variable changes.

Default Value: null

In the following code, the onCellPrepared function is used to change a ProductName's color depending on the Amount of sold products. You can paste this code in the Real-Time Updates demo and see how it works.

jQuery

JavaScript

$(function() {
    $("#treeListContainer").dxTreeList({
        // ...
        repaintChangesOnly: true,
        onCellPrepared: function(e) {
            if(e.rowType === "data" && e.column.dataField === "ProductName") {
                e.cellElement.css("color", e.data.Amount >= 10000 ? "green" : "red");
                // Tracks the `Amount` data field
                e.watch(function() {
                    return e.data.Amount;
                }, function() {
                    e.cellElement.css("color", e.data.Amount >= 10000 ? "green" : "red");
                })
            }
        }
    })
})

Angular

TypeScript

HTML

import { DxTreeListModule } from "devextreme-angular";
// ...
export class AppComponent {
    onCellPrepared(e) {
        if(e.rowType === "data" && e.column.dataField === "ProductName") {
            e.cellElement.style.color = e.data.Amount >= 10000 ? "green" : "red";
            // Tracks the `Amount` data field
            e.watch(function() {
                return e.data.Amount;
            }, function() {
                e.cellElement.style.color = e.data.Amount >= 10000 ? "green" : "red";
            })
        }
    }
}
@NgModule({
    imports: [
        // ...
        DxTreeListModule
    ],
    // ...
})

<dx-tree-list ...
    [repaintChangesOnly]="true"
    (onCellPrepared)="onCellPrepared($event)">
</dx-tree-list>

Vue

App.vue

<template>
    <DxTreeList
        :repaint-changes-only="true"
        @cell-prepared="onCellPrepared"
    />
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import TreeList from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList
    },
    methods: {
       onCellPrepared(e) {
            if(e.rowType === "data" && e.column.dataField === "ProductName") {
                e.cellElement.style.color = e.data.Amount >= 10000 ? "green" : "red";
                // Tracks the `Amount` data field
                e.watch(function() {
                    return e.data.Amount;
                }, function() {
                    e.cellElement.style.color = e.data.Amount >= 10000 ? "green" : "red";
                })
            }
        }
    }
}
</script>

React

App.js

import React from 'react';

import 'devextreme/dist/css/dx.light.css';

import TreeList from 'devextreme-react/tree-list';

class App extends React.Component {
    // ...
    render() {
        return (
            <TreeList
                 repaintChangesOnly={true}
                 onCellPrepared={this.onCellPrepared}
            />
        );
    }
    onCellPrepared = (e) => {
        if(e.rowType === "data" && e.column.dataField === "ProductName") {
            e.cellElement.style.color = e.data.Amount >= 10000 ? "green" : "red";
            // Tracks the `Amount` data field
            e.watch(function() {
                return e.data.Amount;
            }, function() {
                e.cellElement.style.color = e.data.Amount >= 10000 ? "green" : "red";
            })
        }
    }
}
export default App;

ASP.NET MVC Controls

Razor C#

@(Html.DevExtreme().TreeList()
    .ID("treeListContainer")
    // ...
    .RepaintChangesOnly(true)
    .OnCellPrepared("treeList_cellPrepared_handler")
)
<script>
    function treeList_cellPrepared_handler(e) {
        if (e.rowType === "data" && e.column.dataField === "ProductName") {
            e.cellElement.css("color", e.data.Amount >= 10000 ? "green" : "red");
            // Tracks the `Amount` data field
            e.watch(function() {
                return e.data.Amount;
            }, function() {
                e.cellElement.css("color", e.data.Amount >= 10000 ? "green" : "red");
            })
        }
    }
</script>

View on GitHub

onContentReady

A function that is executed when the UI component is rendered and each time the component is repainted.

Type:

Function parameters:

e:

ContentReadyEvent

Information about the event.

Object structure:

Name	Type	Description
model	any	The model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Name

Type

Description

model

any

The model data. Available only if you use Knockout.

element

HTMLElement | jQuery

The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.

component

TreeList

The UI component's instance.

Default Value: null

onContextMenuPreparing

A function that is executed before the context menu is rendered.

Type:

ContextMenuPreparingEvent

Function parameters:

e:

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
column	TreeList Column	This column's configuration.
columnIndex	Number	The index of the column on which the context menu is invoked. For details on indexes, see the following help topic: Column and Row Indexes.
component	TreeList	The UI component's instance.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
items	Array<Object>	Items to be displayed in the context menu. Their structure is described in the items property description. Each item also contains the onItemClick event handler, which allows you to access the clicked or tapped item's data.
model	any	Model data. Available only if you use Knockout.
row	TreeList Row	The row properties.
rowIndex	Number	The index of the row on which the context menu is invoked. Refer to the following help topic for more information: Column and Row Indexes.
target	String	The name of the element on which the context menu is invoked: "header", "content", or "footer". This field is read-only.
targetElement	HTMLElement \| jQuery	The element's container. It is an HTML Element or a jQuery Element when you use jQuery.

Default Value: null

In the following code, the onContextMenuPreparing function adds a custom item to the context menu invoked when a user right-clicks any column header:

jQuery

index.js

$(function() {
    $("#treeListContainer").dxTreeList({
        // ...
        onContextMenuPreparing: function(e) {
            if (e.target == "header") {
                // e.items can be undefined
                if (!e.items) e.items = [];

                // Add a custom menu item
                e.items.push({
                    text: "Log Column Caption",
                    onItemClick: function() {
                        console.log(e.column.caption);
                    }
                });
            }
        }
    });
});

Angular

app.component.html

app.component.ts

app.module.ts

<dx-tree-list ...
    (onContextMenuPreparing)="addMenuItems($event)">
</dx-tree-list>

import { Component } from '@angular/core';

@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
    styleUrls: ['./app.component.css']
})
export class AppComponent {
    addMenuItems(e) {
        if (e.target == 'header') {
            // e.items can be undefined
            if (!e.items) e.items = [];

            // Add a custom menu item
            e.items.push({
                text: 'Log Column Caption',
                onItemClick: () => {
                    console.log(e.column.caption);
                }
            });
        }
    }
}

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { AppComponent } from './app.component';

import { DxTreeListModule } from 'devextreme-angular';

@NgModule({
    declarations: [
        AppComponent
    ],
    imports: [
        BrowserModule,
        DxTreeListModule
    ],
    providers: [ ],
    bootstrap: [AppComponent]
})
export class AppModule { }

Vue

App.vue

<template>
    <DxTreeList ...
        @context-menu-preparing="addMenuItems">
    </DxTreeList>
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import DxTreeList from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList
    },
    data() {
        return {
            // ...
        }
    },
    methods: {
        addMenuItems(e) {
            if (e.target == 'header') {
                // e.items can be undefined
                if (!e.items) e.items = [];

                // Add a custom menu item
                e.items.push({
                    text: 'Log Column Caption',
                    onItemClick: () => {
                        console.log(e.column.caption);
                    }
                });
            }
        }
    }
}
</script>

React

App.js

import React from 'react';

import 'devextreme/dist/css/dx.light.css';

import TreeList from 'devextreme-react/tree-list';

class App extends React.Component {
    addMenuItems(e) {
        if (e.target == 'header') {
            // e.items can be undefined
            if (!e.items) e.items = [];

            // Add a custom menu item
            e.items.push({
                text: 'Log Column Caption',
                onItemClick: () => {
                    console.log(e.column.caption);
                }
            });
        }
    }

    render() {
        return (
            <TreeList ...
                onContextMenuPreparing={this.addMenuItems}>
            </TreeList>
        );
    }
}
export default App;

onDataErrorOccurred

A function that is executed when an error occurs in the data source.

Type:

Function parameters:

e:

DataErrorOccurredEvent

Information on the occurred error.

Object structure:

Name	Type	Description
error	JavaScript Error Object	The standard Error object that defines the error.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

Handles errors that might occur in the data source. To obtain a human-readable description of the error in the function, use the error.message field.

onDisposing

A function that is executed before the UI component is disposed of.

Type:

Function parameters:

e:

DisposingEvent

Information about the event.

Object structure:

Name	Type	Description
model	any	The model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Name

Type

Description

model

any

The model data. Available only if you use Knockout.

element

HTMLElement | jQuery

The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.

component

TreeList

The UI component's instance.

Default Value: null

onEditCanceled

A function that is executed after row changes are discarded.

Type:

Function parameters:

e:

EditCanceledEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
changes	Array<DataChange>	Discarded row changes.
model	any	Model data. Available only if Knockout is used.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

onEditCanceling

A function that is executed when the edit operation is canceled, but row changes are not yet discarded.

Type:

Function parameters:

e:

EditCancelingEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
changes	Array<DataChange>	Row changes to be discarded.
model	any	Model data. Available only if Knockout is used.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.
cancel	Boolean	Set this field to true if the row changes should not be discarded.

Default Value: null

An edit operation can be canceled from the UI (with the Cancel button) or programatically (with the cancelEditData() method).

onEditingStart

A function that is executed before a cell or row switches to the editing state.

Type:

Function parameters:

e:

EditingStartEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
cancel	Boolean	Allows you to cancel row editing.
column	Object	The configuration of the column whose cell is switching to the editing state. Available in "cell" and "batch" editing modes.
component	TreeList	The UI component's instance.
data	Object	The data of the row to be edited.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
key	any	The row's key. The key of an added but not yet saved row is undefined.
model	any	Model data. Available only if Knockout is used.

Default Value: null

If the editing.mode is "batch" or "cell", this function is executed while the UI component renders columns of boolean dataType and other columns whose showEditorAlways property is true.

onEditorPrepared

A function that is executed after an editor is created. Not executed for cells with an editCellTemplate.

Type:

Function parameters:

e:

EditorPreparedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
component	TreeList	The UI component's instance.
dataField	String	The name of the field that provides data for the column the editor belongs to.
disabled	Boolean	Indicates whether the editor is disabled.
editorElement	HTMLElement \| jQuery	The editor's container. It is an HTML Element or a jQuery Element when you use jQuery.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
model	any	Model data. Available only if you use Knockout.
parentType	String	The editor's location. One of "dataRow", "filterRow", "headerRow" or "searchPanel".
readOnly	Boolean	Indicates whether the editor is read-only.
row	TreeList Row	The properties of the row the editor belongs to.
rtlEnabled	Boolean	Indicates whether the editor uses right-to-left representation.
setValue	any	A method you should call to change the cell value and, optionally, the displayed value after the editor's value is changed.
updateValueTimeout	Number	Gets and sets the delay between the moment a user stops typing a filter value and the change is applied. Available if the parentType is "filterRow" or "searchPanel".
value	any	The editor's value.
width	Number	The editor's width; equals null for all editors except for those whose parentType equals "searchPanel".

Default Value: null

onEditorPreparing

A function used to customize a cell's editor. Not executed for cells with an editCellTemplate.

Type:

Function parameters:

e:

EditorPreparingEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
cancel	Boolean	Allows you to cancel the editor's creation. You can set this field's value to true and implement a custom editor.
component	TreeList	The UI component's instance.
dataField	String	The name of the field that provides data for the column the editor belongs to.
disabled	Boolean	Indicates whether the editor is disabled.
editorElement	HTMLElement \| jQuery	The editor's container. It is an HTML Element or a jQuery Element when you use jQuery.
editorName	String	Allows you to change the editor. Accepts names of DevExtreme UI components only, for example, "dxTextBox". Import a new editor's module when DevExtreme modules are used.
editorOptions	Object	Gets and sets the editor's configuration.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
model	any	Model data. Available only if you use Knockout.
parentType	String	The editor's location. One of "dataRow", "filterRow", "headerRow" or "searchPanel".
readOnly	Boolean	Indicates whether the editor is read-only.
row	TreeList Row	The properties of the row the editor belongs to.
rtlEnabled	Boolean	Indicates whether the editor uses right-to-left representation.
setValue	any	A method you should call to change the cell value and, optionally, the displayed value after the editor's value is changed.
updateValueTimeout	Number	Gets and sets the delay between the moment a user stops typing a filter value and the change is applied. Available if the parentType is "filterRow" or "searchPanel".
value	any	The editor's value. This field is read-only. To change the editor's value, use the setValue(newValue, newText) function parameter.
width	Number	The editor's width; equals null for all editors except for those whose parentType equals "searchPanel".

Default Value: null

Use this function to:

Override the default editor's onValueChanged handler. For other default editor customizations, use editorOptions.

jQuery

index.js

$(function() {
    $("#treeListContainer").dxTreeList({
        // ...
        onEditorPreparing: function(e) {
            if (e.dataField === "requiredDataField" && e.parentType === "dataRow") {
                const defaultValueChangeHandler = e.editorOptions.onValueChanged;
                e.editorOptions.onValueChanged = function(args) { // Override the default handler
                    // ...
                    // Custom commands go here
                    // ...
                    // If you want to modify the editor value, call the setValue function:
                    // e.setValue(newValue);
                    // Otherwise, call the default handler:
                    defaultValueChangeHandler(args);
                }
            }
        }
    });
});

Angular

app.component.html

app.component.ts

app.module.ts

<dx-tree-list ...
    (onEditorPreparing)="overrideOnValueChanged($event)">
</dx-tree-list>

import { Component } from '@angular/core';

@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
    styleUrls: ['./app.component.css']
})
export class AppComponent {
    overrideOnValueChanged(e) {
        if (e.dataField === 'requiredDataField' && e.parentType === 'dataRow') {
            const defaultValueChangeHandler = e.editorOptions.onValueChanged;
            e.editorOptions.onValueChanged = function (args) { // Override the default handler
                // ...
                // Custom commands go here
                // ...
                // If you want to modify the editor value, call the setValue function:
                // e.setValue(newValue);
                // Otherwise, call the default handler:
                defaultValueChangeHandler(args);
            }
        }
    }
}

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { AppComponent } from './app.component';

import { DxTreeListModule } from 'devextreme-angular';

@NgModule({
    declarations: [
        AppComponent
    ],
    imports: [
        BrowserModule,
        DxTreeListModule
    ],
    providers: [],
    bootstrap: [AppComponent]
})
export class AppModule { }

Vue

App.vue

<template>
    <DxTreeList ...
        @editor-preparing="overrideOnValueChanged">
    </DxTreeList>
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import DxTreeList from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList
    },
    // ...
    methods: {
        overrideOnValueChanged(e) {
            if (e.dataField === 'requiredDataField' && e.parentType === 'dataRow') {
                const defaultValueChangeHandler = e.editorOptions.onValueChanged;
                e.editorOptions.onValueChanged = function (args) { // Override the default handler
                    // ...
                    // Custom commands go here
                    // ...
                    // If you want to modify the editor value, call the setValue function:
                    // e.setValue(newValue);
                    // Otherwise, call the default handler:
                    defaultValueChangeHandler(args);
                }
            }
        }
    }
}
</script>

React

App.js

import React from 'react';

import 'devextreme/dist/css/dx.light.css';

import TreeList from 'devextreme-react/tree-list';

class App extends React.Component {
    overrideOnValueChanged(e) {
        if (e.dataField === 'requiredDataField' && e.parentType === 'dataRow') {
            const defaultValueChangeHandler = e.editorOptions.onValueChanged;
            e.editorOptions.onValueChanged = function (args) { // Override the default handler
                // ...
                // Custom commands go here
                // ...
                // If you want to modify the editor value, call the setValue function:
                // e.setValue(newValue);
                // Otherwise, call the default handler:
                defaultValueChangeHandler(args);
            }
        }
    }
    render() {
        return (
            <TreeList ...
                onEditorPreparing={this.overrideOnValueChanged}>
            </TreeList>
        );
    }
}
export default App;

ASP.NET MVC Controls

Razor C#

@(Html.DevExtreme().TreeList()
    // ...
    .OnEditorPreparing("overrideOnValueChanged")
)

<script type="text/javascript">
    function overrideOnValueChanged(e) {
        if (e.dataField === "requiredDataField" && e.parentType === "dataRow") {
            const defaultValueChangeHandler = e.editorOptions.onValueChanged;
            e.editorOptions.onValueChanged = function(args) { // Override the default handler
                // ...
                // Custom commands go here
                // ...
                // If you want to modify the editor value, call the setValue function:
                // e.setValue(newValue);
                // Otherwise, call the default handler:
                defaultValueChangeHandler(args);
            }
        }
    }
</script>

Customize editors used in the search panel, filter row, and selection column.
Use the parentType function parameter to check if the editor that the function customizes belongs to one of these UI elements.
Dynamically change editor properties in the editing state.
Implement other customization cases.

NOTE

We do not recommend that you use the onEditorPreparing function to specify an editor's default value. Use the onInitNewRow function instead.
This function has the highest priority over the other editing tools. The order of priority is as follows: onEditorPreparing > columns.formItem > editing.form.

onFocusedCellChanged

A function that is executed after the focused cell changes. Applies only to cells in data rows.

Type:

Function parameters:

e:

FocusedCellChangedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
cellElement	HTMLElement \| jQuery	The focused cell's container. It is an HTML Element or a jQuery Element when you use jQuery.
column	TreeList Column	The column's properties.
columnIndex	Number	The index of the cell's column.
component	TreeList	The UI component's instance.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
model	any	Model data. Available only if you use Knockout.
row	TreeList Row	The row's properties.
rowIndex	Number	The index of the cell's row.

Default Value: null

onFocusedCellChanging

A function that is executed before the focused cell changes. Applies only to cells in data rows.

Type:

Function parameters:

e:

FocusedCellChangingEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
cancel	Boolean	Allows you to cancel focusing a new cell.
cellElement	HTMLElement \| jQuery	The to-be-focused cell's container. It is an HTML Element or a jQuery Element when you use jQuery.
columns	Array<TreeList Column>	The visible columns' properties.
component	TreeList	The UI component's instance.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
event	Event (jQuery or EventObject)	The event that caused the function to execute. It is an EventObject or a jQuery.Event when you use jQuery.
isHighlighted	Boolean	true if the cell is highlighted; otherwise false, even if the cell's row is highlighted.
model	any	Model data. Available only if you use Knockout.
newColumnIndex	Number	The index of the column the cell that should be focused belongs to.
newRowIndex	Number	The index of the row the cell that should be focused belongs to.
prevColumnIndex	Number	The index of the previously focused cell's column.
prevRowIndex	Number	The index of the previously focused cell's row.
rows	Array<TreeList Row>	The visible rows' properties.

Default Value: null

In the following code, the onFocusedCellChanging function is used to customize keyboard navigation within a row. The cell navigation is looped in a single row because focus moves to the row's first cell after reaching the last cell and vice versa:

jQuery

JavaScript

$(function() {
    $("#treeListContainer").dxTreeList({
        // ...
        onFocusedCellChanging: function (e) {
            if (e.newColumnIndex == e.prevColumnIndex) {
                e.newColumnIndex = (e.newColumnIndex == 0 ? e.columns.length - 1 : 0)
            }
        }
    });
});

Angular

TypeScript

HTML

import { DxTreeListModule } from "devextreme-angular";
// ...
export class AppComponent {
    onFocusedCellChanging (e) {
        if (e.newColumnIndex == e.prevColumnIndex) {
            e.newColumnIndex = (e.newColumnIndex == 0 ? e.columns.length - 1 : 0)
        }
    }
}
@NgModule({
    imports: [
        // ...
        DxTreeListModule
    ],
    // ...
})

<dx-tree-list ...
    (onFocusedCellChanging)="onFocusedCellChanging($event)">
</dx-tree-list>

Vue

App.vue

<template>
    <DxTreeList ...
        @focused-cell-changing="onFocusedCellChanging"
    >
    </DxTreeList>
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import { DxTreeList } from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList
    },
    methods: {
        onFocusedCellChanging(e) {
            if (e.newColumnIndex == e.prevColumnIndex) {
                e.newColumnIndex = (e.newColumnIndex == 0 ? e.columns.length - 1 : 0);
            }
        }
    }
}
</script>

React

App.js

import React from 'react';

import 'devextreme/dist/css/dx.light.css';

import TreeList from 'devextreme-react/tree-list';

class App extends React.Component {
    render() {
        return (
            <TreeList ...
                onFocusedCellChanging={this.onFocusedCellChanging}
            >
            </TreeList>
        );
    }

    onFocusedCellChanging(e) {
        if (e.newColumnIndex == e.prevColumnIndex) {
            e.newColumnIndex = (e.newColumnIndex == 0 ? e.columns.length - 1 : 0);
        }
    }
}
export default App;

onFocusedRowChanged

A function that executed when the focused row changes. Applies only to data rows. focusedRowEnabled should be true.

Type:

Function parameters:

e:

FocusedRowChangedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
component	TreeList	The UI component's instance.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
model	any	Model data. Available only if you use Knockout.
row	TreeList Row	The row's properties.
rowElement	HTMLElement \| jQuery	The focused row's container. It is an HTML Element or a jQuery Element when you use jQuery.
rowIndex	Number	The row's index.

Default Value: null

onFocusedRowChanging

A function that is executed before the focused row changes. Applies only to data rows. focusedRowEnabled should be true.

Type:

Function parameters:

e:

FocusedRowChangingEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
cancel	Boolean	Allows you to cancel focusing a new row.
component	TreeList	The UI component's instance.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
event	Event (jQuery or EventObject)	The event that caused the function to execute. It is an EventObject or a jQuery.Event when you use jQuery.
model	any	Model data. Available only if you use Knockout.
newRowIndex	Number	The index of the row to be focused.
prevRowIndex	Number	The index of the previously focused row.
rowElement	HTMLElement \| jQuery	The to-be-focused row's container. It is an HTML Element or a jQuery Element when you use jQuery.
rows	Array<TreeList Row>	The visible rows' properties.

Default Value: null

onInitialized

A function used in JavaScript frameworks to save the UI component instance.

Type:

Function parameters:

e:

InitializedEvent

Information about the event.

Object structure:

Name	Type	Description
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Name

Type

Description

element

HTMLElement | jQuery

The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.

component

TreeList

The UI component's instance.

Default Value: null

Angular

app.component.html

app.component.ts

<dx-tree-list ...
    (onInitialized)="saveInstance($event)">
</dx-tree-list>

import { Component } from "@angular/core";
import TreeList from "devextreme/ui/data_grid";
// ...
export class AppComponent {
    treeListInstance: TreeList;
    saveInstance (e) {
        this.treeListInstance = e.component;
    }
}

Vue

App.vue (Options API)

App.vue (Composition API)

<template>
    <div>
        <DxTreeList ...
            @initialized="saveInstance">
        </DxTreeList>
    </div>
</template>

<script>
import DxTreeList from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList
    },
    data: function() {
        return {
            treeListInstance: null
        };
    },
    methods: {
        saveInstance: function(e) {
            this.treeListInstance = e.component;
        }
    }
};
</script>

<template>
    <div>
        <DxTreeList ...
            @initialized="saveInstance">
        </DxTreeList>
    </div>
</template>

<script setup>
import DxTreeList from 'devextreme-vue/tree-list';

let treeListInstance = null;

const saveInstance = (e) => {
    treeListInstance = e.component;
}
</script>

React

App.js

import TreeList from 'devextreme-react/tree-list';

class App extends React.Component {
    constructor(props) {
        super(props);

        this.saveInstance = this.saveInstance.bind(this);
    }

    saveInstance(e) {
        this.treeListInstance = e.component;
    }

    render() {
        return (
            <div>
                <TreeList onInitialized={this.saveInstance} />
            </div>
        );
    }
}

jQuery

Get a UI component Instance in jQuery

Angular

Get a UI component Instance in Angular

Vue

Get a UI component Instance in Vue

React

Get a UI component Instance in React

onInitNewRow

A function that is executed before a new row is added to the UI component.

Type:

Function parameters:

e:

InitNewRowEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
promise	Promise<void> (jQuery or native)	Assign a Promise to this field to perform an asynchronous operation, such as a request to a server.
data	Object	The data of the inserted row; initially empty.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

You can use this function to populate a new row with data. Add fields to the data object that correspond to the data source object's fields. Note that the data object can omit some fields from the data source object. Add only those fields that should initialize specific cells of a new row.

In the following code, the onInitNewRow function is used to provide default values for the new row's ID, hireDate, and position cells. The promise parameter is used to obtain values for the ID and position cell values asynchronously:

jQuery

index.js

$(function() {
    $("#treeListContainer").dxTreeList({
        dataSource: [{
            ID: 1,
            hireDate: 1491821760000,
            position: "CTO"
        }, // ...
        ],
        columns: [ "ID", {
            dataField: "hireDate",
            dataType: "date"
        }, "position" ],
        onInitNewRow: function(e) {
            e.data.hireDate = new Date();
            e.promise = getDefaultData().done(function(data) {
                e.data.ID = data.ID;
                e.data.position = data.Position;
            });
        }
    });
    function getDefaultData() {
        var promise = $.ajax({
            // The URL returns { ID: 100, Position: "Programmer" }
            url: "https://www.mywebsite.com/api/getDefaultData",
            dataType: "json"
        });
        return promise;
    }
})

Angular

app.component.html

app.component.ts

app.module.ts

<dx-tree-list ...
    [dataSource]="employees"
    (onInitNewRow)="onInitNewRow($event)">
    <dxi-column dataField="ID"></dxi-column>
    <dxi-column dataField="hireDate" dataType="date"></dxi-column>
    <dxi-column dataField="position"></dxi-column>
</dx-tree-list>

import { Component } from '@angular/core';
import { lastValueFrom } from 'rxjs';

@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
    styleUrls: ['./app.component.css']
})
export class AppComponent {
    employees = [{
        ID: 1,
        hireDate: 1491821760000,
        position: "CTO"
    }, // ...
    ];
    onInitNewRow(e) {
        e.data.hireDate = new Date();
        e.promise = this.getDefaultData().then((data: any) => {
            e.data.ID = data.ID;
            e.data.position = data.Position;
        });
    }
    async getDefaultData() {
        try {
            const data = await lastValueFrom(this.httpClient.get("https://www.mywebsite.com/api/getDefaultData"));
            // "data" is { ID: 100, Position: "Programmer" }
            return data;
        } catch (error) {
            throw 'Data Loading Error';
        }
    }
}

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { AppComponent } from './app.component';

import { DxTreeListModule } from 'devextreme-angular';

@NgModule({
    declarations: [
        AppComponent
    ],
    imports: [
        BrowserModule,
        DxTreeListModule
    ],
    providers: [ ],
    bootstrap: [AppComponent]
})
export class AppModule { }

Vue

App.vue

<template>
    <DxTreeList ...
        :data-source="employees"
        @init-new-row="initNewRow">
        <DxColumn data-field="ID" />
        <DxColumn data-field="hireDate" data-type="date" />
        <DxColumn data-field="position" />
    </DxTreeList>
</template>
<script>
import 'devextreme/dist/css/dx.light.css';

import { DxTreeList, DxColumn } from 'devextreme-vue/tree-list';
import 'whatwg-fetch';

const employees = [{
    ID: 1,
    hireDate: 1491821760000,
    position: "CTO"
}, // ...
];

export default {
    components: {
        DxTreeList,
        DxColumn
    },
    data() {
        employees
    },
    methods: {
        initNewRow(e) {
            e.data.hireDate = new Date();
            e.promise = this.getDefaultData().then(data => {
                e.data.ID = data.ID;
                e.data.position = data.Position;
            });
        }
        getDefaultData() {
            return fetch("https://www.mywebsite.com/api/getDefaultData")
                .then(response => response.json())
                .then((data) => {
                    // "data" is { ID: 100, Position: "Programmer" }
                    return data;
                })
                .catch(() => { throw 'Data Loading Error' });
        }
    }
};
</script>

React

App.js

import React from 'react';

import 'devextreme/dist/css/dx.light.css';

import { TreeList, Column } from 'devextreme-react/tree-list';
import 'whatwg-fetch';

const employees = [{
    ID: 1,
    hireDate: 1491821760000,
    position: "CTO"
}, // ...
];

class App extends React.Component {
    constructor(props) {
        super(props);
        this.onInitNewRow = this.onInitNewRow.bind(this);
        this.getDefaultData = this.getDefaultData.bind(this);
    }

    onInitNewRow(e) {
        e.promise = this.getDefaultData().then(data => {
            e.data.ID = data.ID;
            e.data.position = data.Position;
        });
        e.data.hireDate = new Date();
    }

    getDefaultData() {
        return fetch("https://www.mywebsite.com/api/getDefaultData")
            .then(response => response.json())
            .then((data) => {
                // "data" is { ID: 100, Position: "Programmer" }
                return data;
            })
            .catch(() => { throw 'Data Loading Error' });
    }

    render() {
        return (
            <TreeList ...
                dataSource={employees}
                onInitNewRow={this.onInitNewRow}>
                <Column dataField="ID" />
                <Column dataField="hireDate" dataType="date" />
                <Column dataField="position" />
            </TreeList>
        );
    }
}
export default App;

ASP.NET MVC Controls

Razor C#

@(Html.DevExtreme().TreeList()
    .DataSource(new JS("employees"))
    .Columns(c => {
        c.Add().DataField("ID");
        c.Add().DataField("hireDate")
            .DataType(GridColumnDataType.Date);
        c.Add().DataField("position");
    })
    .OnInitNewRow("onInitNewRow")
)
<script type="text/javascript">
    var employees = [{
        ID: 1,
        hireDate: 1491821760000,
        position: "CTO"
    }, // ...
    ];
    function onInitNewRow(e) {
        e.data.hireDate = new Date();
        e.promise = getDefaultData().done(data => {
            e.data.ID = data.ID;
            e.data.position = data.Position;
        });
    }
    function getDefaultData() {
        let promise = $.ajax({
            // The URL returns { ID: 100, Position: "Programmer" }
            url: "https://www.mywebsite.com/api/getDefaultData",
            dataType: "json",
        });
        return promise;
    }
</script>

onKeyDown

A function that is executed when the UI component is in focus and a key has been pressed down.

Type:

Function parameters:

e:

KeyDownEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
handled	Boolean	Indicates whether the UI component has already handled this event.
model	any	Model data. Available only if you use Knockout.
event	Event (jQuery or EventObject)	The event that caused the function to execute. It is a EventObject or a jQuery.Event when you use jQuery. This event is based on the keydown native event.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

The following code shows how to handle a key combination:

jQuery

index.js

$(function() {
    $("#treeList").dxTreeList({
        // ...
        onKeyDown(e) {
            if (e.event.ctrlKey && e.event.key === "Q") {
                console.log("Ctrl + Q was pressed");
            }
        }
    });
});

Angular

app.component.html

app.component.ts

app.module.ts

<dx-tree-list ...
    (onKeyDown)="onKeyDown($event)">
</dx-tree-list>

import { Component } from '@angular/core';

@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
    styleUrls: ['./app.component.css']
})
export class AppComponent {
    onKeyDown(e) {
        if (e.event.ctrlKey && e.event.key === "Q") {
            console.log("Ctrl + Q was pressed");
        }
    }
}

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { AppComponent } from './app.component';

import { DxTreeListModule } from 'devextreme-angular';

@NgModule({
    declarations: [
        AppComponent
    ],
    imports: [
        BrowserModule,
        DxTreeListModule
    ],
    providers: [ ],
    bootstrap: [AppComponent]
})
export class AppModule { }

Vue

App.vue

<template>
    <DxTreeList ...
        @key-down="onKeyDown">
    </DxTreeList>
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import DxTreeList from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList
    },
    methods: {
        onKeyDown(e) {
            if (e.event.ctrlKey && e.event.key === "Q") {
                console.log("Ctrl + Q was pressed");
            }
        }
    }
}
</script>

React

App.js

import React from 'react';

import 'devextreme/dist/css/dx.light.css';

import TreeList from 'devextreme-react/tree-list';

class App extends React.Component {
    render() {
        return (
            <TreeList ...
                onKeyDown={this.onKeyDown}>
            </TreeList>
        );
    }

    onKeyDown(e) {
        if (e.event.ctrlKey && e.event.key === "Q") {
            console.log("Ctrl + Q was pressed");
        }
    }
}
export default App;

onNodesInitialized

A function that is executed after the loaded nodes are initialized.

Type:

Function parameters:

e:

NodesInitializedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
component	TreeList	The UI component's instance.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
model	any	Model data. Available only if you use Knockout.
root	TreeList Node	The root node.

Default Value: null

Use this function to modify node fields. You can traverse the tree using the forEachNode(callback) method or implement your custom algorithm. In a custom algorithm, access the root node first - use the function parameter's root field. Use the the children field to access first-level child nodes. Do the same for every node in the collection. Thus you can traverse the entire tree.

onOptionChanged

A function that is executed after a UI component property is changed.

Type:

Function parameters:

e:

OptionChangedEvent

Information about the event.

Object structure:

Name	Type	Description
value	any	The modified property's new value.
previousValue	any	The UI component's previous value.
name	String	The modified property if it belongs to the first level. Otherwise, the first-level property it is nested into.
model	any	Model data. Available only if you use Knockout.
fullName	String	The path to the modified property that includes all parent properties.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

The following example shows how to subscribe to component property changes:

jQuery

index.js

$(function() {
    $("#treeListContainer").dxTreeList({
        // ...
        onOptionChanged: function(e) {
            if(e.name === "changedProperty") {
                // handle the property change here
            }
        }
    });
});

Angular

app.component.html

app.component.ts

app.module.ts

<dx-tree-list ...
    (onOptionChanged)="handlePropertyChange($event)">
</dx-tree-list>

import { Component } from '@angular/core';

@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
    styleUrls: ['./app.component.css']
})

export class AppComponent {
    // ...
    handlePropertyChange(e) {
        if(e.name === "changedProperty") {
            // handle the property change here
        }
    }
}

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { AppComponent } from './app.component';
import { DxTreeListModule } from 'devextreme-angular';

@NgModule({
    declarations: [
        AppComponent
    ],
    imports: [
        BrowserModule,
        DxTreeListModule
    ],
    providers: [ ],
    bootstrap: [AppComponent]
})

export class AppModule { }

Vue

App.vue

<template>
    <DxTreeList ...
        @option-changed="handlePropertyChange"
    />
</template>

<script>
import 'devextreme/dist/css/dx.light.css';
import DxTreeList from 'devextreme-vue/tree-list';

export default {
    components: {
        DxTreeList
    },
    // ...
    methods: {
        handlePropertyChange: function(e) {
            if(e.name === "changedProperty") {
                // handle the property change here
            }
        }
    }
}
</script>

React

App.js

import React from 'react';
import 'devextreme/dist/css/dx.light.css';

import TreeList from 'devextreme-react/tree-list';

const handlePropertyChange = (e) => {
    if(e.name === "changedProperty") {
        // handle the property change here
    }
}

export default function App() {
    return (
        <TreeList ...
            onOptionChanged={handlePropertyChange}
        />
    );
}

onRowClick

A function that is executed when a grid row is clicked or tapped.

Type:

Function parameters:

e:

RowClickEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
columns	Array<Object>	All column configurations.
component	TreeList	The UI component's instance.
data	Object	The row's data.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
event	Event (jQuery or EventObject)	The event that caused the function to execute. It is an EventObject or a jQuery.Event when you use jQuery.
handled	Boolean	Indicates whether internal UI component functions have already handled the event.
isExpanded	Boolean	Indicates whether the row is expanded or collapsed. Available if rowType is "data".
isNewRow	Boolean	Indicates that the row is added, but not yet saved. Available if rowType is "data".
isSelected	Boolean	Indicates whether the row is selected. Available if rowType is "data" or "detail".
key	any	The row's key. Available if the rowType is "data", "detail" or "detailAdaptive". For plain data, the key value depends on the keyExpr property. For hierarchical data, the key is generated automatically or set in the underlying Store of the data source.
level	Number	The node's hierarchical level.
model	any	Model data. Available only if you use Knockout.
node	TreeList Node	The row's node.
rowElement	HTMLElement \| jQuery	The row's container. It is an HTML Element or a jQuery Element when you use jQuery.
rowIndex	Number	The row's index. Refer to Column and Row Indexes for more information.
rowType	String	The row's type.
values	Array<any>	Values displayed in the row cells.

Default Value: null

Prior to this function, the UI component executes the onCellClick function and sometimes internal functions. You can use the handled field to check whether internal functions were executed.

NOTE

When the clicked row is in the editing state or switches to this state, the onRowClick function is not executed. Instead, specify the onCellClick function.

onRowCollapsed

A function that is executed after a row is collapsed.

Type:

Function parameters:

e:

RowCollapsedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
key	any	The key of the row.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

onRowCollapsing

A function that is executed before a row is collapsed.

Type:

Function parameters:

e:

RowCollapsingEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
key	any	The key of the row.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.
cancel	Boolean	Allows you to cancel row collapsing.

Default Value: null

To cancel row collapsing, assign true to the cancel field of the function parameter.

onRowDblClick

A function that is executed when a row is double-clicked or double-tapped. Executed after onCellDblClick.

Type:

Function parameters:

e:

RowDblClickEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
columns	Array<TreeList Column>	The configurations of visible columns.
component	TreeList	The UI component's instance.
data	Object	The row's data.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
event	Event (jQuery or EventObject)	The event that caused the function to execute. It is an EventObject or a jQuery.Event when you use jQuery.
isExpanded	Boolean	Indicates whether the row is expanded or collapsed. Available if rowType is "data".
isNewRow	Boolean	Indicates that the row is added, but not yet saved. Available if rowType is "data".
isSelected	Boolean	Indicates whether the row is selected. Available if rowType is "data" or "detail".
key	any	The row's key. Available if the rowType is "data", "detail" or "detailAdaptive".
model	any	Model data. Available only if you use Knockout.
rowElement	HTMLElement \| jQuery	The row's container. It is an HTML Element or a jQuery Element when you use jQuery.
rowIndex	Number	The row's index. Refer to Column and Row Indexes for more information.
rowType	String	The row's type.
values	Array<any>	Raw values displayed in the row's cells.

Default Value: null

NOTE

onRowDblClick is not executed when the clicked row is in the editing state or switches to this state. You can use onCellDblClick instead.

onRowExpanded

A function that is executed after a row is expanded.

Type:

Function parameters:

e:

RowExpandedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
key	any	The key of the row.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

onRowExpanding

A function that is executed before a row is expanded.

Type:

Function parameters:

e:

RowExpandingEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
key	any	The key of the group or master row.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.
cancel	Boolean	Allows you to cancel row expansion.

Default Value: null

To cancel row expansion, assign true to the cancel field of the function parameter.

onRowInserted

A function that is executed after a new row has been inserted into the data source.

Type:

Function parameters:

e:

RowInsertedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
key	any	The key of the row. If a field providing keys is not specified in the data source, the whole data object is considered the key.
error	JavaScript Error Object	The standard Error object defining an error that may occur during insertion.
data	Object	The data of the row.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

NOTE

In batch editing mode, if several rows have been inserted, this function will be executed for each row individually.

onRowInserting

A function that is executed before a new row is inserted into the data source.

Type:

Function parameters:

e:

RowInsertingEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
data	Object	The data of the row that should be inserted.
cancel	Boolean \| Promise<Boolean> (jQuery or native) \| Promise<void> (jQuery or native)	true, a Promise resolved with true, or a rejected Promise stops row insertion. false or a Promise resolved with false or undefined continues row insertion.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

This function allows you to intercept row insertion and perform additional actions. The following code shows how to use the function parameter's cancel field to prevent or continue row insertion. In this code, a Promise is assigned to this field. Row insertion continues if a user confirms it and row data validation on the server succeeds (the Promise is resolved); otherwise, row insertion is prevented (the Promise is rejected):

jQuery

JavaScript

$(function(){
    $("#treeListContainer").dxTreeList({
        // ...
        onRowInserting: function(e) {
            const deferred = $.Deferred();
            const promptPromise = DevExpress.ui.dialog.confirm("Are you sure?", "Confirm changes");
            promptPromise.done((dialogResult) => {
                if (dialogResult) {
                    $.ajax({
                        url: "https://url/to/your/validation/service",
                        dataType: "json",
                        data: e.newData,
                        success: function(validationResult) {
                            if (validationResult.errorText) {
                                deferred.reject(validationResult.errorText);
                            } else {
                                deferred.resolve(false);
                            }
                        },
                        error: function() {
                            deferred.reject("Data Loading Error");
                        },
                        timeout: 5000
                    });
                } else {
                    deferred.resolve(true);
                }
            });
            e.cancel = deferred.promise();
        }
    })
})

Angular

app.component.ts

app.component.html

app.module.ts

import { HttpClient, HttpClientModule, HttpParams } from "@angular/common/http";
import { confirm } from 'devextreme/ui/dialog';
import { lastValueFrom } from 'rxjs';
// ...

export class AppComponent {
    constructor(private httpClient: HttpClient) { /*...*/ }
    async insertRow(e) {
        try {
            const dialogResult = await this.confirmAsync("Are you sure?", "Confirm changes");
            if (dialogResult) {
                let params = new HttpParams();
                for (let key in e.newData) {
                    params = params.set(key, e.newData[key]);
                }
                const validationResult = await lastValueFrom(this.httpClient.get("https://url/to/your/validation/service", { params }));
                if (validationResult.errorText) {
                    throw validationResult.errorText;
                } else {
                    e.cancel = false;
                }
            } else {
                e.cancel = true;
            }
        } catch (error) {
            console.error("Validation or confirmation error", error);
            e.cancel = Promise.reject(error);
        }
    }

    private confirmAsync(message: string, title?: string): Promise<boolean> {
        return new Promise<boolean>((resolve) => {
            const dialogResult = confirm(message, title);
            resolve(dialogResult);
        });
    }
}

<dx-tree-list ...
    (onRowInserting)="insertRow($event)">
</dx-tree-list>

// ...
import { DxTreeListModule } from 'devextreme-angular';
import { HttpClientModule } from "@angular/common/http";

@NgModule({
    imports: [
        // ...
        DxTreeListModule,
        HttpClientModule
    ],
    // ...
})

Vue

App.vue

<template>
    <DxTreeList ...
        @row-inserting="insertRow">
    </DxTreeList>
</template>
<script>
import DxTreeList, { ... } from 'devextreme-vue/tree-list';
import { confirm } from 'devextreme/ui/dialog';
// ...

export default {
    components: {
        DxTreeList,
        // ...
    },
    // ...
    methods: {
        insertRow(e) {
            const isCanceled = new Promise((resolve, reject) => {
                const promptPromise = confirm("Are you sure?", "Confirm changes");
                promptPromise.then((dialogResult) => {
                    if (dialogResult) {
                        let params = new HttpParams();
                        for (let key in e.newData) {
                            params = params.set(key, e.newData[key]);
                        }
                        fetch(`https://url/to/your/validation/service${params}`)
                            .then((validationResult) => {
                                if (validationResult.errorText) {
                                    reject(validationResult.errorText);
                                } else {
                                    resolve(false);
                                }
                            });
                    } else {
                        return resolve(true);
                    }
                });
            });
            e.cancel = isCanceled;
        }
    },
};
</script>

React

App.js

import React from 'react';
import 'devextreme/dist/css/dx.light.css';

import { confirm } from 'devextreme/ui/dialog';
import TreeList, { ... } from 'devextreme-react/tree-list';

function insertRow(e) {
    const isCanceled = new Promise((resolve, reject) => {
        const promptPromise = confirm("Are you sure?", "Confirm changes");
        promptPromise.then((dialogResult) => {
            if (dialogResult) {
                let params = new HttpParams();
                for (let key in e.newData) {
                    params = params.set(key, e.newData[key]);
                }
                fetch(`https://url/to/your/validation/service${params}`)
                    .then((validationResult) => {
                        if (validationResult.errorText) {
                            reject(validationResult.errorText);
                        } else {
                            resolve(false);
                        }
                    });
            } else {
                return resolve(true);
            }
        });
    });
    e.cancel = isCanceled;
}

function App() {
    return (
        <TreeList ...
            onRowInserting={insertRow}>
            // ...
        </TreeList>
    );
}

export default App;

NOTE

Do not use this function to insert data. If you need a custom insert logic, implement CustomStore's insert function.
In batch editing mode, this function is executed for each row individually if several rows should be inserted.

onRowPrepared

A function that is executed after a row is created.

Type:

Function parameters:

e:

RowPreparedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
columns	Array<TreeList Column>	All column configurations.
component	TreeList	The UI component's instance.
data	Object	The row's data. Available if the rowType is "data", "detail" or "detailAdaptive".
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
isExpanded	Boolean	Indicates whether the row is expanded or collapsed. Available if rowType is "data".
isNewRow	Boolean	Indicates that the row is added, but not yet saved. Available if rowType is "data".
isSelected	Boolean	Indicates whether the row is selected. Available if rowType is "data" or "detail".
key	any	The row's key. Available if the rowType is "data", "detail" or "detailAdaptive". For plain data, the value of the key depends on the keyExpr property. For hierarchical data, the key is generated automatically or set in the underlying Store of the data source.
level	Number	The node's hierarchical level.
model	any	Model data. Available only if you use Knockout.
node	TreeList Node	The row's node.
rowElement	HTMLElement \| jQuery	The row's container. It is an HTML Element or a jQuery Element when you use jQuery.
rowIndex	Number	The row's index. Refer to Column and Row Indexes for more information.
rowType	String	The row's type.
values	Array<any>	Values displayed in the row cells.

Default Value: null

onRowRemoved

A function that is executed after a row has been removed from the data source.

Type:

Function parameters:

e:

RowRemovedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
key	any	The key of the row. If a field providing keys is not specified in the data source, the whole data object is considered the key.
error	JavaScript Error Object	The standard Error object defining an error that may occur during removal.
data	Object	The data of the row.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

NOTE

In batch editing mode, if several rows have been removed, this function will be executed for each row individually.

onRowRemoving

A function that is executed before a row is removed from the data source.

Type:

Function parameters:

e:

RowRemovingEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
key	any	The row's key.
data	Object	The data of the row that should be removed.
cancel	Boolean \| Promise<Boolean> (jQuery or native) \| Promise<void> (jQuery or native)	true, a Promise resolved with true, or a rejected Promise stops row removal. false or a Promise resolved with false or undefined continues row removal.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

NOTE

In batch editing mode, this function is executed for each row individually if several rows should be removed.

This function allows you to intercept row removal and perform additional actions. The following code shows how to use the function parameter's cancel field to prevent or continue removal. In this code, a Promise is assigned to this field. Removal continues if a user confirms it and row validation on the server succeeds (the Promise is resolved); otherwise, removal is prevented (the Promise is rejected):

jQuery

JavaScript

$(function(){
    $("#treeListContainer").dxTreeList({
        // ...
        onRowRemoving: function(e) {
            var deferred = $.Deferred();
            $.ajax({
                url: `https://url/to/your/validation/service/${e.key}`,
                success: function(validationResult) {
                    if (validationResult.errorText) {
                        deferred.reject(validationResult.errorText);
                    } else {
                        deferred.resolve(false);
                    }
                },
                error: function() {
                    deferred.reject("Data Loading Error");
                },
                timeout: 5000
            });
            e.cancel = deferred.promise();
        },
    })
})

Angular

TypeScript

app.component.html

app.module.ts

import { DxTreeListModule } from "devextreme-angular";
import { HttpClient, HttpClientModule, HttpParams } from "@angular/common/http";
import { lastValueFrom } from 'rxjs';

export class AppComponent {
    constructor(private httpClient: HttpClient) { /*...*/ }
    validateRemove(e) {
        const isCanceled = new Promise((resolve, reject) => {
            const request$ = this.httpClient
                .get(`https://url/to/your/validation/service/${e.key}`);

            lastValueFrom(request$).then((validationResult) => {
                if (validationResult.errorText) {
                    reject(validationResult.errorText);
                } else {
                    resolve(false);
                }
            });
        });
        e.cancel = isCanceled;
    }
}

<dx-tree-list ...
    (onRowRemoving)="validateRemove($event)">
</dx-tree-list>

// ...
import { DxTreeListModule } from 'devextreme-angular';
import { HttpClientModule } from "@angular/common/http";

@NgModule({
    imports: [
        // ...
        DxTreeListModule,
        HttpClientModule
    ],
    // ...
})

Vue

App.vue

<template>
    <DxTreeList ...
        @row-removing="validateRemove">
    </DxTreeList>
</template>
<script>
import DxTreeList, { ... } from 'devextreme-vue/tree-list';
// ...

export default {
    components: {
        DxTreeList,
        // ...
    },
    // ...
    methods: {
        validateRemove(e) {
            const isCanceled = new Promise((resolve, reject) => {
                fetch(`https://url/to/your/validation/service/${e.key}`)
                    .then((validationResult) => {
                        if (validationResult.errorText) {
                            reject(validationResult.errorText);
                        } else {
                            resolve(false);
                        }
                    });
            });
            e.cancel = isCanceled;
        }
    },
};
</script>

React

App.js

import React from 'react';
import 'devextreme/dist/css/dx.light.css';

import TreeList, { ... } from 'devextreme-react/tree-list';

function validateRemove(e) {
    const isCanceled = new Promise((resolve, reject) => {
        fetch(`https://url/to/your/validation/service/${e.key}`)
            .then((validationResult) => {
                if (validationResult.errorText) {
                    reject(validationResult.errorText);
                } else {
                    resolve(false);
                }
            });
    });
    e.cancel = isCanceled;
}

function App() {
    return (
        <TreeList ...
            onRowRemoving={validateRemove}>
            // ...
        </TreeList>
    );
}

export default App;

onRowUpdated

A function that is executed after a row has been updated in the data source.

Type:

Function parameters:

e:

RowUpdatedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
key	any	The key of the row. If a field providing keys is not specified in the data source, the whole data object is considered the key.
error	JavaScript Error Object	The standard Error object defining an error that may occur during updating.
data	Object	The updated data of the row.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

NOTE

In batch editing mode, if several rows have been updated, this function will be executed for each row individually.

onRowUpdating

A function that is executed before a row is updated in the data source.

Type:

Function parameters:

e:

RowUpdatingEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
oldData	Object	The row's old data.
newData	Object	The row's updated data.
key	any	The row's key.
cancel	Boolean \| Promise<Boolean> (jQuery or native) \| Promise<void> (jQuery or native)	true, a Promise resolved with true, or a rejected Promise stops row updating. false or a Promise resolved with false or undefined continues row updating.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

This function allows you to intercept row update and perform additional actions. The following code shows how to use the function parameter's cancel field to prevent or continue row update. In this code, a Promise is assigned to this field. Row update continues if a user confirms it and row data validation on the server succeeds (the Promise is resolved); otherwise, row update is prevented (the Promise is rejected).

jQuery

JavaScript

$(function(){
    $("#treeListContainer").dxTreeList({
        // ...
        onRowUpdating: function(e) {
            const deferred = $.Deferred();
            const promptPromise = DevExpress.ui.dialog.confirm("Are you sure?", "Confirm changes");
            promptPromise.done((dialogResult) => {
                if (dialogResult) {
                    $.ajax({
                        url: "https://url/to/your/validation/service",
                        dataType: "json",
                        data: e.newData,
                        success: function(validationResult) {
                            if (validationResult.errorText) {
                                deferred.reject(validationResult.errorText);
                            } else {
                                deferred.resolve(false);
                            }
                        },
                        error: function() {
                            deferred.reject("Data Loading Error");
                        },
                        timeout: 5000
                    });
                } else {
                    deferred.resolve(true);
                }
            });
            e.cancel = deferred.promise();
        }
    })
})

Angular

app.component.ts

app.component.html

app.module.ts

import { HttpClient, HttpClientModule, HttpParams } from "@angular/common/http";
import { confirm } from 'devextreme/ui/dialog';
import { lastValueFrom } from 'rxjs';
// ...

export class AppComponent {
    constructor(private httpClient: HttpClient) { /*...*/ }
    async updateRow(e) {
        try {
            const dialogResult = await this.confirmAsync("Are you sure?", "Confirm changes");
            if (dialogResult) {
                let params = new HttpParams();
                for (let key in e.newData) {
                    params = params.set(key, e.newData[key]);
                }
                const validationResult = await lastValueFrom(this.httpClient.get("https://url/to/your/validation/service", { params }));
                if (validationResult.errorText) {
                    throw validationResult.errorText;
                } else {
                    e.cancel = false;
                }
            } else {
                e.cancel = true;
            }
        } catch (error) {
            console.error("Validation or confirmation error", error);
            e.cancel = Promise.reject(error);
        }
    }

    private confirmAsync(message: string, title?: string): Promise<boolean> {
        return new Promise<boolean>((resolve) => {
            const dialogResult = confirm(message, title);
            resolve(dialogResult);
        });
    }
}

<dx-tree-list ...
    (onRowUpdating)="updateRow($event)">
</dx-tree-list>

// ...
import { DxTreeListModule } from 'devextreme-angular';
import { HttpClientModule } from "@angular/common/http";

@NgModule({
    imports: [
        // ...
        DxTreeListModule,
        HttpClientModule
    ],
    // ...
})

Vue

App.vue

<template>
    <DxTreeList ...
        @row-updating="updateRow">
    </DxTreeList>
</template>
<script>
import DxTreeList, { ... } from 'devextreme-vue/tree-list';
import { confirm } from 'devextreme/ui/dialog';
// ...

export default {
    components: {
        DxTreeList,
        // ...
    },
    // ...
    methods: {
        updateRow(e) {
            const isCanceled = new Promise((resolve, reject) => {
                const promptPromise = confirm("Are you sure?", "Confirm changes");
                promptPromise.then((dialogResult) => {
                    if (dialogResult) {
                        let params = new HttpParams();
                        for (let key in e.newData) {
                            params = params.set(key, e.newData[key]);
                        }
                        fetch(`https://url/to/your/validation/service${params}`)
                            .then((validationResult) => {
                                if (validationResult.errorText) {
                                    reject(validationResult.errorText);
                                } else {
                                    resolve(false);
                                }
                            });
                    } else {
                        return resolve(true);
                    }
                });
            });
            e.cancel = isCanceled;
        }
    },
};
</script>

React

App.js

import React from 'react';
import 'devextreme/dist/css/dx.light.css';

import { confirm } from 'devextreme/ui/dialog';
import TreeList, { ... } from 'devextreme-react/tree-list';

function updateRow(e) {
    const isCanceled = new Promise((resolve, reject) => {
        const promptPromise = confirm("Are you sure?", "Confirm changes");
        promptPromise.then((dialogResult) => {
            if (dialogResult) {
                let params = new HttpParams();
                for (let key in e.newData) {
                    params = params.set(key, e.newData[key]);
                }
                fetch(`https://url/to/your/validation/service${params}`)
                    .then((validationResult) => {
                        if (validationResult.errorText) {
                            reject(validationResult.errorText);
                        } else {
                            resolve(false);
                        }
                    });
            } else {
                return resolve(true);
            }
        });
    });
    e.cancel = isCanceled;
}

function App() {
    return (
        <TreeList ...
            onRowUpdating={updateRow}>
            // ...
        </TreeList>
    );
}

export default App;

NOTE

You can use this function to change e.newData values, but do not use it to implement custom update logic. For this purpose, you can implement the onSaving or CustomStore's update function.
In batch editing mode, this function is executed for each row individually if several rows should be updated.

onRowValidating

A function that is executed after cells in a row are validated against validation rules.

Type:

Function parameters:

e:

RowValidatingEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
promise	Promise<void> (jQuery or native)	Assign a Promise to this field to perform an asynchronous operation, such as a request to a server.
oldData	any	The data of the validated row before changes.
newData	Object	The data of the validated row after changes.
key	any	The key of the row. If a field providing keys is not specified in the data source, the whole data object is considered the key.
isValid	Boolean	Indicates whether data in all row cells satisfies the validation rules.
errorText	String	An error message to be displayed.
brokenRules	Array<ValidationRule>	An array of broken rules. The structure of rule objects is described in the Validation Rules section.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

Use this function to perform operations before messages about failed validation are shown. For instance, you can run additional checks and change the isValid function parameter to change the validation result. You can also change the errorText parameter to correct the error message.

The following code illustrates how to validate an email address on the server and display an error row with a custom error text if the validation fails:

jQuery

index.js

$(function() {
    $("#treeListContainer").dxTreeList({
        // ...
        onRowValidating: function(e) {
            if(e.newData.Email) {
                e.promise = checkEmail(e.newData.Email)
                    .done(function(result) {
                        e.errorText = result.errorText;
                        e.isValid = result.isValid;
                    });
            }
        }
    });
});
function checkEmail(email) {
    return $.ajax({
        // The url returns { errorText: "The Email address you entered already exists.", isValid: false }
        url: "https://www.mywebsite.com/api/checkEmail",
        dataType: "json",
        data: { email: email }
    });
}

Angular

app.component.html

app.component.ts

app.module.ts

<dx-tree-list ...
    (onRowValidating)="onRowValidating($event)">
</dx-tree-list>

import { Component } from '@angular/core';
import { HttpClient, HttpParams } from '@angular/common/http';
import { lastValueFrom } from 'rxjs';

@Component({
    selector: 'app-root',
    templateUrl: './app.component.html',
    styleUrls: ['./app.component.css']
})
export class AppComponent {
    constructor(@Inject(HttpClient) http: HttpClient) {
        this.checkEmail = this.checkEmail.bind(this);
    }
    onRowValidating(e) {
        if(e.newData.Email) {
            e.promise = this.checkEmail(e.newData.Email)
                .then((result: any) => {
                    // "result" is { errorText: "The Email address you entered already exists.", isValid: false }
                    e.errorText = result.errorText;
                    e.isValid = result.isValid;
                });
        }
    }
    checkEmail(email) {
        const params = new HttpParams().set("email", email);
        return lastValueFrom(
            this.http.get("https://www.mywebsite.com/api/checkEmail", { params })
        );
    }
}

import { BrowserModule } from '@angular/platform-browser';
import { NgModule, Component } from '@angular/core';
import { HttpClientModule } from '@angular/common/http';
import { AppComponent } from './app.component';

import { DxTreeListModule } from 'devextreme-angular';

@NgModule({
    declarations: [
        AppComponent
    ],
    imports: [
        BrowserModule,
        HttpClientModule,
        DxTreeListModule
    ],
    providers: [],
    bootstrap: [AppComponent]
})
export class AppModule { }

Vue

App.vue

<template>
    <DxTreeList ...
        @row-validating="onRowValidating">
    </DxTreeList>
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import DxTreeList from 'devextreme-vue/tree-list';
import 'whatwg-fetch';

export default {
    components: {
        DxTreeList
    },
    // ...
    methods: {
        onRowValidating(e) {
            if(e.newData.Email) {
                e.promise = this.checkEmail(e.newData.Email)
                    .then((result: any) => {
                        // "result" is { errorText: "The Email address you entered already exists.", isValid: false }
                        e.errorText = result.errorText;
                        e.isValid = result.isValid;
                    });
            }
        },
        checkEmail(email) {
            let params = '?' + 'email=' + email;
            return fetch("https://www.mywebsite.com/api/checkEmail${params}");
        }
    }
}
</script>

React

App.js

import React from 'react';

import 'devextreme/dist/css/dx.light.css';

import TreeList from 'devextreme-react/tree-list';
import 'whatwg-fetch';

class App extends React.Component {
    constructor(props) {
        super(props);
        this.onRowValidating = this.onRowValidating.bind(this);
    }

    onRowValidating(e) {
        if(e.newData.Email) {
            e.promise = this.checkEmail(e.newData.Email)
                .then((result: any) => {
                    // "result" is { errorText: "The Email address you entered already exists.", isValid: false }
                    e.errorText = result.errorText;
                    e.isValid = result.isValid;
                });
        }
    }
    checkEmail(email) {
        let params = '?' + 'email=' + email;
        return fetch("https://www.mywebsite.com/api/checkEmail${params}");
    }

    render() {
        return (
            <TreeList ...
                onRowValidating={this.onRowValidating}>
            </TreeList>
        );
    }
}
export default App;

ASP.NET MVC Controls

Razor C#

@(Html.DevExtreme().TreeList()
    // ...
    .OnRowValidating("onRowValidating")
)

<script type="text/javascript">
    function onRowValidating(e) {
        if(e.newData.Email) {
            e.promise = checkEmail(e.newData.Email)
                .done(function(result) {
                    e.errorText = result.errorText;
                    e.isValid = result.isValid;
                });
        }
    }
    function checkEmail(email) {
        return $.ajax({
            // The url returns { errorText: "The Email address you entered already exists.", isValid: false }
            url: "https://www.mywebsite.com/api/checkEmail",
            dataType: "json",
            data: { email: email }
        });
    }
</script>

NOTE

In batch editing mode, if changes in several rows are committed simultaneously, this function is executed for each row.

onSaved

A function that is executed after row changes are saved.

Type:

Function parameters:

e:

SavedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
changes	Array<DataChange>	Saved changes.
model	any	Model data. Available only if Knockout is used.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

onSaving

A function that is executed before pending row changes are saved.

Type:

Function parameters:

e:

SavingEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
promise	Promise<void> (jQuery or native)	Assign a Promise to this field to perform an asynchronous operation, such as a request to a server.
changes	Array<DataChange>	Pending row changes; a copy of the editing.changes array.
cancel	Boolean	Set this field to true if the default saving logic should be disabled.
model	any	Model data. Available only if Knockout is used.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

A save operation can be initiated from the UI (with the Save button) or programatically (with the saveEditData() method).

onSelectionChanged

A function that is executed after selecting a row or clearing its selection.

Type:

Function parameters:

e:

SelectionChangedEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
selectedRowsData	Array<Object>	The data of all selected rows. Does not include calculated values.
selectedRowKeys	Array<any>	The keys of all selected rows.
currentSelectedRowKeys	Array<any>	The keys of the rows that have been selected.
currentDeselectedRowKeys	Array<any>	The keys of the rows whose selection has been cleared.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

This function has the following specifics:

If a field providing key values is not specified in the data source, the whole data object is considered the key. In this case, all arrays passed to the function contain data objects instead of keys.
When selection is deferred, this function does not provide access to keys and data. Use the getSelectedRowsData() or getSelectedRowKeys() method instead.

View Demo View on GitHub

onToolbarPreparing

A function that is executed before the toolbar is created.

Type:

Function parameters:

e:

ToolbarPreparingEvent

Information about the event that caused the function's execution.

Object structure:

Name	Type	Description
toolbarOptions	Toolbar Configuration	The properties of the toolbar.
model	any	Model data. Available only if you use Knockout.
element	HTMLElement \| jQuery	The UI component's container. It is an HTML Element or a jQuery Element when you use jQuery.
component	TreeList	The UI component's instance.

Default Value: null

If you use DevExtreme ASP.NET components or JQuery in your application, specify this property to get the component's instance. In Angular, Vue, or React, use the toolbar property instead.

jQuery

The following code adds a refresh button to the toolbar:

$(function() {
    $("#container").dxTreeList({
        // ...
        onToolbarPreparing: function(e) {
            let dataGrid = e.component;
            e.toolbarOptions.items.unshift({
                location: "after",
                widget: "dxButton",
                options: {
                    icon: "refresh",
                    onClick: function() {
                        dataGrid.refresh();
                    }
                }
            });
        }
    });
});

pager

Configures the pager.

Selector: Pager

Type:

Pager

The pager is an element that allows users to navigate through pages and change their size at runtime. The pager consists of the page navigator and several optional elements: the page size selector, navigation buttons, and page information.

DevExtreme HTML5 JavaScript jQuery Angular Knockout UI component TreeList Pager

paging

An object that configures paging.

Selector: Paging

Type:

Paging

Paging allows the UI component to load data in portions instead of loading it simultaneously. To enable paging, set the paging.enabled property to true.

Users can switch between pages and change paging settings using the pager or they can scroll the pages. Paging settings apply with any scrolling mode.

parentIdExpr

Specifies which data field provides parent keys.

Type:

|

Default Value: 'parentId'

Web API Service Demo Load Data on Demand Demo

remoteOperations

Notifies the TreeList of the server's data processing operations. Applies only if data has a plain structure.

Selector: RemoteOperations

Type:

Object

|

Mode

Default Value: 'auto'

Server-side data processing improves the UI component's performance on large datasets. When the server does not implement particular operations (and/or the corresponding remoteOperations fields are false) they are executed on the client. Note that the UI component may send queries to the server while executing a client-side operation.

The following table lists the possible remoteOperations configurations and the operations the server should implement. The server should also implement additional operations depending on the used UI component functionality.

Setting	Required server-side operations	Additional server-side operations
`remoteOperations: { filtering: true }`	filtering	-
`remoteOperations: { sorting: true }`	sorting	filtering^*
`remoteOperations: { grouping: true }`	grouping, filtering	sorting^*

If this functionality is used in the UI component.

NOTE

Filtering and sorting are performed on the server side for the ODataStore, but you can change them to the client side by setting the corresponding remoteOperations fields to false. Other operations are always client-side.

When operations are performed on the server side, the TreeList does not support:

sorting, grouping, and filtering by columns with the calculateCellValue or calculateDisplayValue property defined;
custom sorting using functions (that is, calculateSortValue accepts strings only).

renderAsync

Specifies whether to render the filter row, command columns, and columns with showEditorAlways set to true after other elements.

Type:

Default Value: false

repaintChangesOnly

Specifies whether to repaint only those cells whose data changed.

Type:

Default Value: false

rootValue

Specifies the root node's identifier. Applies if dataStructure is "plain".

Type: any

Default Value: 0

rowAlternationEnabled

Specifies whether rows should be shaded differently.

Type:

Default Value: false

All rows are monochrome without any visual distinctions by default. If you set this property to true, ordinary-looking rows will alternate with slightly shaded ones.

rowDragging

Configures row reordering using drag and drop gestures.

Selector: RowDragging

Type:

RowDragging

rtlEnabled

Switches the UI component to a right-to-left representation.

Type:

DataGrid Demo Navigation UI Demo Editors Demo

Default Value: false

When this property is set to true, the UI component text flows from right to left, and the layout of elements is reversed. To switch the entire application/site to the right-to-left representation, assign true to the rtlEnabled field of the object passed to the DevExpress.config(config) method.

JavaScript

DevExpress.config({
    rtlEnabled: true
});

scrolling

Configures scrolling.

Selector: Scrolling

Type:

Scrolling

Scrolling allows a user to browse data left outside the current viewport. The UI component provides several scrolling modes detailed in the mode property description.

searchPanel

Configures the search panel.

Selector: SearchPanel

Type:

SearchPanel

The search panel allows users to search for values in several columns at once. The UI component searches against only those columns whose allowSearch property is set to true.

DevExtreme HTML5 JavaScript jQuery Angular Knockout UI component DataGrid SearchPanel

To make the search panel visible, set the searchPanel.visible property to true.

View on GitHub

selectedRowKeys

Allows you to select rows or determine which rows are selected.

Type:

Array<any>

Raised Events: onSelectionChanged

Keys are stored in the order the user selects rows.

To access a row using its key, specify the data field that provides key values. Assign the data field's name to the key property of the store that underlies the dataSource.

Single Row Selection Demo Multiple Row Selection Demo

selection

Configures runtime selection.

Selector: Selection

Type:

Selection

A user can select rows in a single or multiple mode. In multiple mode, a user can select all rows at once. To disable this feature, assign false to the allowSelectAll.

showBorders

Specifies whether the outer borders of the UI component are visible.

Type:

Default Value: false

showColumnHeaders

Specifies whether column headers are visible.

Type:

Default Value: true

showColumnLines

Specifies whether vertical lines that separate one column from another are visible.

Type:

Default Value: true, false (Material)

NOTE

If you use the Android or iOS theme, specifying this property doesn't affect anything. These themes avoid displaying column lines in order to provide a native look for the UI component. In case you still require the column lines to be displayed, choose another theme.

showRowLines

Specifies whether horizontal lines that separate one row from another are visible.

Type:

Default Value: false, true (Material, iOS)

sorting

Configures runtime sorting.

Selector: Sorting

Type:

Sorting

A user can sort rows by values of a single or multiple columns depending on the value of the sorting.mode property.

DevExtreme HTML5 JavaScript jQuery Angular Knockout UI component TreeList Sorting

To apply sorting to a column, a user clicks its header or selects a command from the context menu.

DevExtreme HTML5 JavaScript jQuery Angular Knockout UI component TreeList Sorting

Note that rows are sorted within their hierarchical level.

stateStoring

Configures state storing.

Selector: StateStoring

Type:

StateStoring

State storing enables the UI component to save applied settings and restore them the next time the UI component is loaded. Assign true to the stateStoring.enabled property to enable this functionality.

State storing saves the following properties:

expandedRowKeys¹
focusedRowKey
filterValue
selectedRowKeys
searchPanel.text
filterPanel.filterEnabled
paging.pageSize
paging.pageIndex
columns.dataField

columns.dataType
columns.filterType
columns.filterValue
columns.filterValues
columns.fixed
columns.fixedPosition
columns.name
columns.selectedFilterOperation
columns.sortIndex

columns.sortOrder
columns.visible (only if the column chooser is enabled)
columns.visibleIndex
columns.width

expandedRowKeys are not saved if autoExpandAll is true.

syncLookupFilterValues

Specifies whether to show only relevant values in the header filter and filter row.

Type:

Default Value: true

The following table shows how the component behaves when you assign different values to this property. The 'State' column is filtered by the 'Alabama' value. If you set the syncLookupFilterValues to false, the 'City' column's header filter and filter row display all cities instead of showing cities within Alabama only.

Filter type	`false`	`true`
Filter row
Header filter

NOTE

If filtering is enabled in remoteOperations and this property is set to true (default), the component uses the group parameter to fetch values. As a result, lookup columns can lose pagination (the DataSource.paginate property has no effect). To resolve this issue, disable this property.
If the filter panel is visible and at least one column includes headerFilter.dataSource or lookup.dataSource, disable this property. Otherwise, the filter panel may not display data correctly.
If the lookup column's data source lacks data that corresponds to the column data, the header filter may load incorrectly. To prevent this issue, you can either disable the syncLookupFilterValues property or the paginate option for the lookup column data source.

tabIndex

Specifies the number of the element when the Tab key is used for navigating.

Type:

Default Value: 0

The value of this property will be passed to the tabindex attribute of the HTML element that underlies the UI component.

toolbar

Configures the toolbar.

Selector: Toolbar

Type:

dxTreeListToolbar

Default Value: undefined

DevExtreme TreeList - Toolbar

DataGrid Demo

twoWayBindingEnabled

Specifies whether to enable two-way data binding.

Type:

Default Value: true

Two-way data binding ensures that the UI tracks changes made in the data source by a 3rd-party component, and vice versa. This way, the UI component and its data source stay synchronized.

If you implement two-way data binding in the UI component on your own using the cellTemplate and/or editCellTemplate properties, make sure to set the twoWayBindingEnabled property to false.

visible

Specifies whether the UI component is visible.

Type:

Default Value: true

width

Specifies the UI component's width.

Type:

|

|

Return Value:

|

The UI component's width.

Default Value: undefined

This property accepts a value of one of the following types:

Number
The width in pixels.
String
A CSS-accepted measurement of width. For example, "55px", "20vw", "80%", "auto", "inherit".
Function (deprecated since v21.2)
Refer to the W0017 warning description for information on how you can migrate to viewport units.

wordWrapEnabled

Specifies whether text that does not fit into a column should be wrapped.

Type:

Default Value: false
