Filter Hierarchical Fields

In the following code, the FilterBuilder allows filtering by three fields, two of which are hierarchical. The allowHierarchicalFields property set to true specifies displaying hierarchical fields as a tree.

jQuery
JavaScript
const orders = [{
    orderID: 35703,
    address: {
        state: "California",
        city: "Los Angeles"
    }
}, {
    orderID: 35711,
    address: {
        state: "California",
        city: "San Jose"
    }
},
// ...
];

$(function() {
    $("#filterBuilderContainer").dxFilterBuilder({
        fields: [
            { dataField: "orderID" },
            { dataField: "address.state" },
            { dataField: "address.city" }
        ],
        allowHierarchicalFields: true
    });
});
Angular
HTML
TypeScript
<dx-filter-builder
    [allowHierarchicalFields]="true">
    <dxi-field dataField="orderID"></dxi-field>
    <dxi-field dataField="address.state"></dxi-field>
    <dxi-field dataField="address.city"></dxi-field>
</dx-filter-builder>
import { DxFilterBuilderModule } from "devextreme-angular";
// ...
export class AppComponent {
    orders = [{
        orderID: 35703,
        address: {
            state: "California",
            city: "Los Angeles"
        }
    }, {
        orderID: 35711,
        address: {
            state: "California",
            city: "San Jose"
        }
    },
    // ...
    ];
}
@NgModule({
    imports: [
        // ...
        DxFilterBuilderModule
    ],
    // ...
})
Vue
App.vue
<template>
    <DxFilterBuilder
        :allow-hierarchical-fields="true">
        <DxField data-field="orderID" />
        <DxField data-field="address.state" />
        <DxField data-field="address.city" />
    </DxFilterBuilder>
</template>

<script>
import 'devextreme/dist/css/dx.light.css';

import DxFilterBuilder, {
    DxField
} from 'devextreme-vue/filter-builder';

const orders = [{
    orderID: 35703,
    address: {
        state: "California",
        city: "Los Angeles"
    }
}, {
    orderID: 35711,
    address: {
        state: "California",
        city: "San Jose"
    }
},
// ...
];

export default {
    components: {
        DxFilterBuilder,
        DxField
    },
    data() {
        return {
            orders
        }
    }
}
</script>
React
App.js
import 'devextreme/dist/css/dx.light.css';

import FilterBuilder, {
    Field
} from 'devextreme-react/filter-builder';

const orders = [{
    orderID: 35703,
    address: {
        state: "California",
        city: "Los Angeles"
    }
}, {
    orderID: 35711,
    address: {
        state: "California",
        city: "San Jose"
    }
},
// ...
];

export default function App() {
    return (
        <FilterBuilder
            allowHierarchicalFields={true}>
            <Field dataField="orderID" />
            <Field dataField="address.state" />
            <Field dataField="address.city" />
        </FilterBuilder>
    );
}

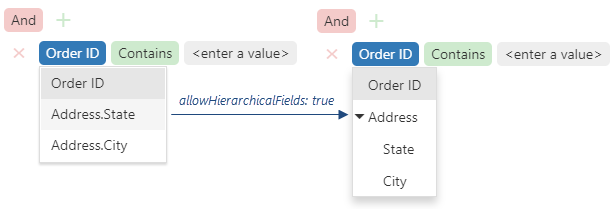

DevExtreme HTML5 JavaScript Filter Builder Hierarchical Fields
