DevExtreme jQuery/JS - Filter Hierarchical Fields

In the following code, the FilterBuilder allows filtering by three fields, two of which are hierarchical. The allowHierarchicalFields option set to true specifies displaying hierarchical fields as a tree.

jQuery
JavaScript
var orders = [{
    orderID: 35703,
    address: {
        state: "California",
        city: "Los Angeles"
    }
}, {
    orderID: 35711,
    address: {
        state: "California",
        city: "San Jose"
    }
},
// ...
];

$(function() {
    $("#filterBuilderContainer").dxFilterBuilder({
        fields: [
            { dataField: "orderID" },
            { dataField: "address.state" },
            { dataField: "address.city" }
        ],
        allowHierarchicalFields: true
    });
});
Angular
TypeScript
HTML
import { DxFilterBuilderModule } from "devextreme-angular";
// ...
export class AppComponent {
    orders = [{
        orderID: 35703,
        address: {
            state: "California",
            city: "Los Angeles"
        }
    }, {
        orderID: 35711,
        address: {
            state: "California",
            city: "San Jose"
        }
    },
    // ...
    ];

    fields = [
        { dataField: "orderID" },
        { dataField: "address.state" },
        { dataField: "address.city" }
    ];
}
@NgModule({
    imports: [
        // ...
        DxFilterBuilderModule
    ],
    // ...
})
<dx-filter-builder
    [fields]="fields">
</dx-filter-builder>

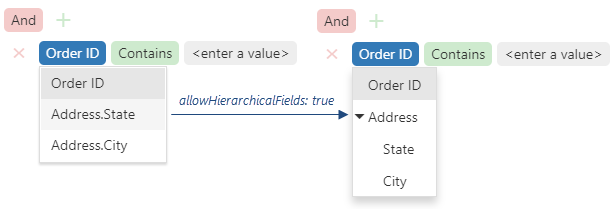

DevExtreme HTML5 JavaScript Filter Builder Hierarchical Fields

View Demo
