JavaScript/jQuery Diagram - Diagram Tools

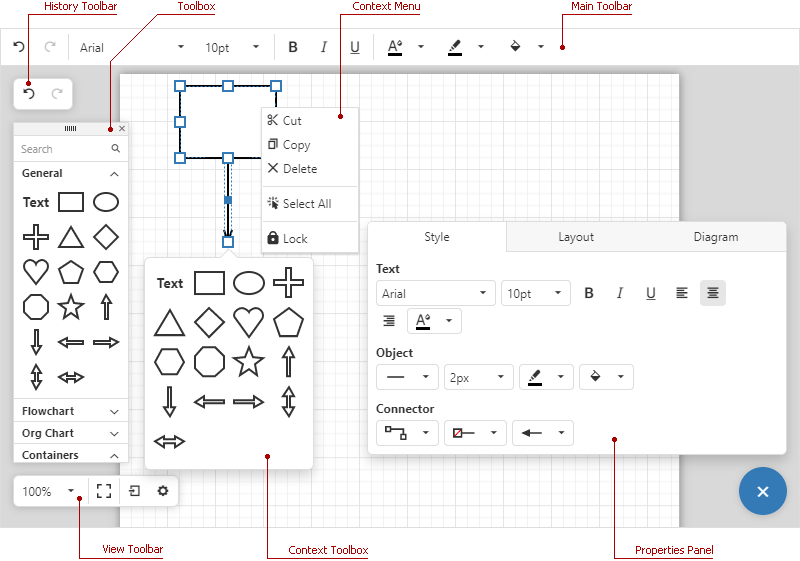

The Diagram UI component allows you to customize its UI tools with the following properties.

Diagram control data toolbox

View Demo

index.js
  • $(function() {
  • var diagram = $("#diagram").dxDiagram({
  • contextMenu: {
  • enabled: true,
  • commands: ["bringToFront","sendToBack", "lock", "unlock"]
  • },
  • contextToolbox: {
  • enabled: true,
  • category: "flowchart",
  • shapeIconsPerRow: 5,
  • width: 200
  • },
  • propertiesPanel: {
  • visibility: 'visible',
  • tabs: [{
  • groups: [ { title: "Page Properties", commands: ["pageSize", "pageOrientation", "pageColor"] } ]
  • }]
  • },
  • historyToolbar: {
  • visible: false
  • },
  • viewToolbar: {
  • visible: true,
  • commands: ["zoomLevel", "fullScreen", "units",
  • {name: "sayHello", text: "Say Hello", icon: "blockquote"},
  • {name: "export", icon: "export", items: ["exportSvg","exportPng","exportJpg"]}]
  • },
  • mainToolbar: {
  • visible: true,
  • commands: [
  • { name: "undo" },
  • { name: "redo" },
  • { name: "separator" },
  • { name: "fontName" },
  • { name: "fontSize" },
  • { name: "separator" },
  • { name: "bold" },
  • { name: "italic" },
  • { name: "underline" },
  • { name: "separator" },
  • { name: "fontColor" },
  • { name: "lineColor" },
  • { name: "fillColor" },
  • { name: "separator" },
  • { name: "clear", icon: "clearsquare", text: "Clear Diagram" }
  • ]
  • },
  • toolbox: {
  • visibility: 'visible',
  • groups: [
  • "general", { category: "flowchart", title: "Flowchart", expanded: true }
  • ],
  • showSearch: false,
  • shapeIconsPerRow: 4,
  • width: 220
  • },
  • onCustomCommand: function(e) {
  • if(e.name === "clear") {
  • var result = DevExpress.ui.dialog.confirm(
  • "Are you sure you want to clear the diagram? This action cannot be undone.", "Warning");
  • result.done(
  • function(dialogResult) {
  • if(dialogResult) {
  • e.component.import("");
  • }
  • }
  • );}
  • else if (e.name == "sayHello")
  • alert("Hello!")
  • }
  • }).dxDiagram("instance");
  • ...
